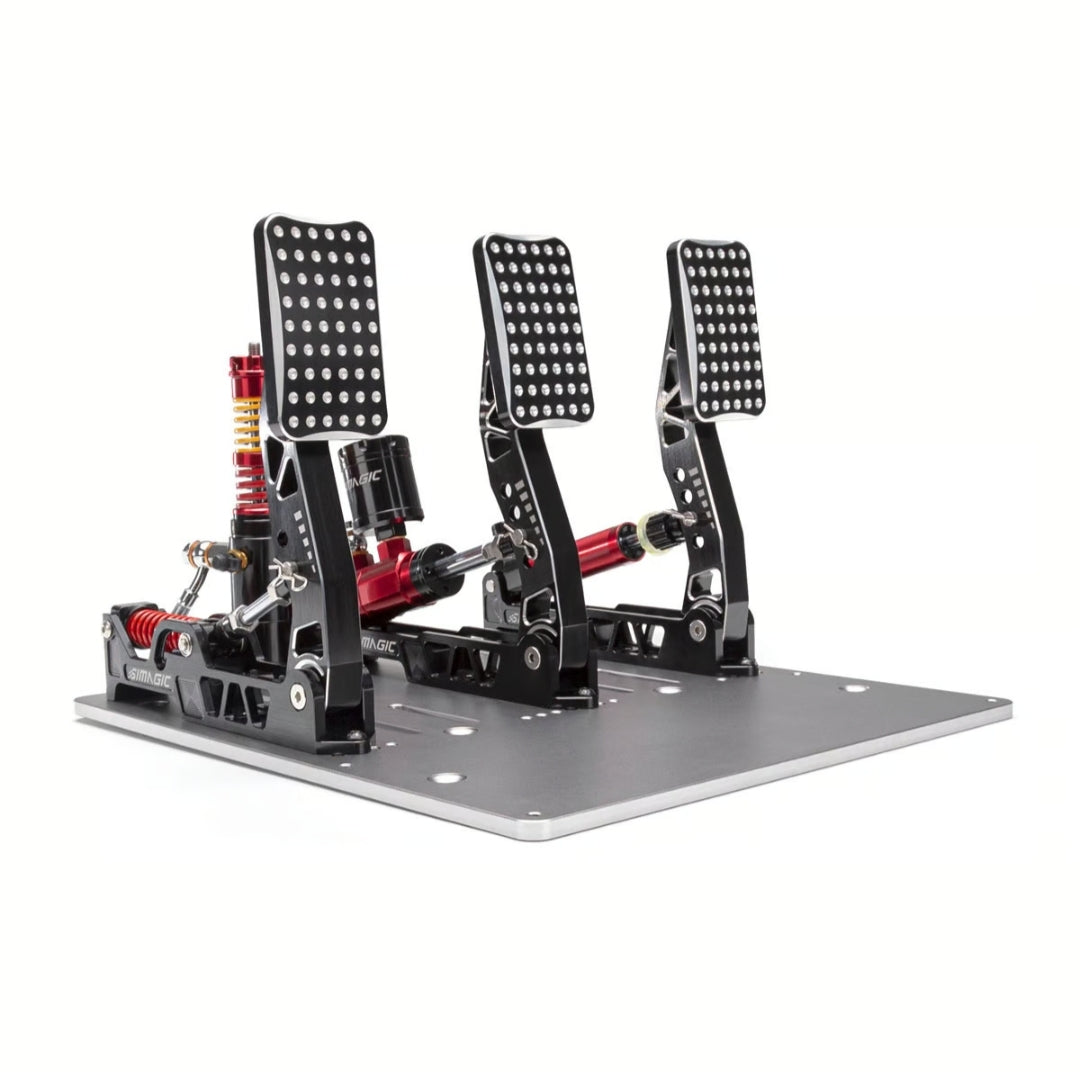

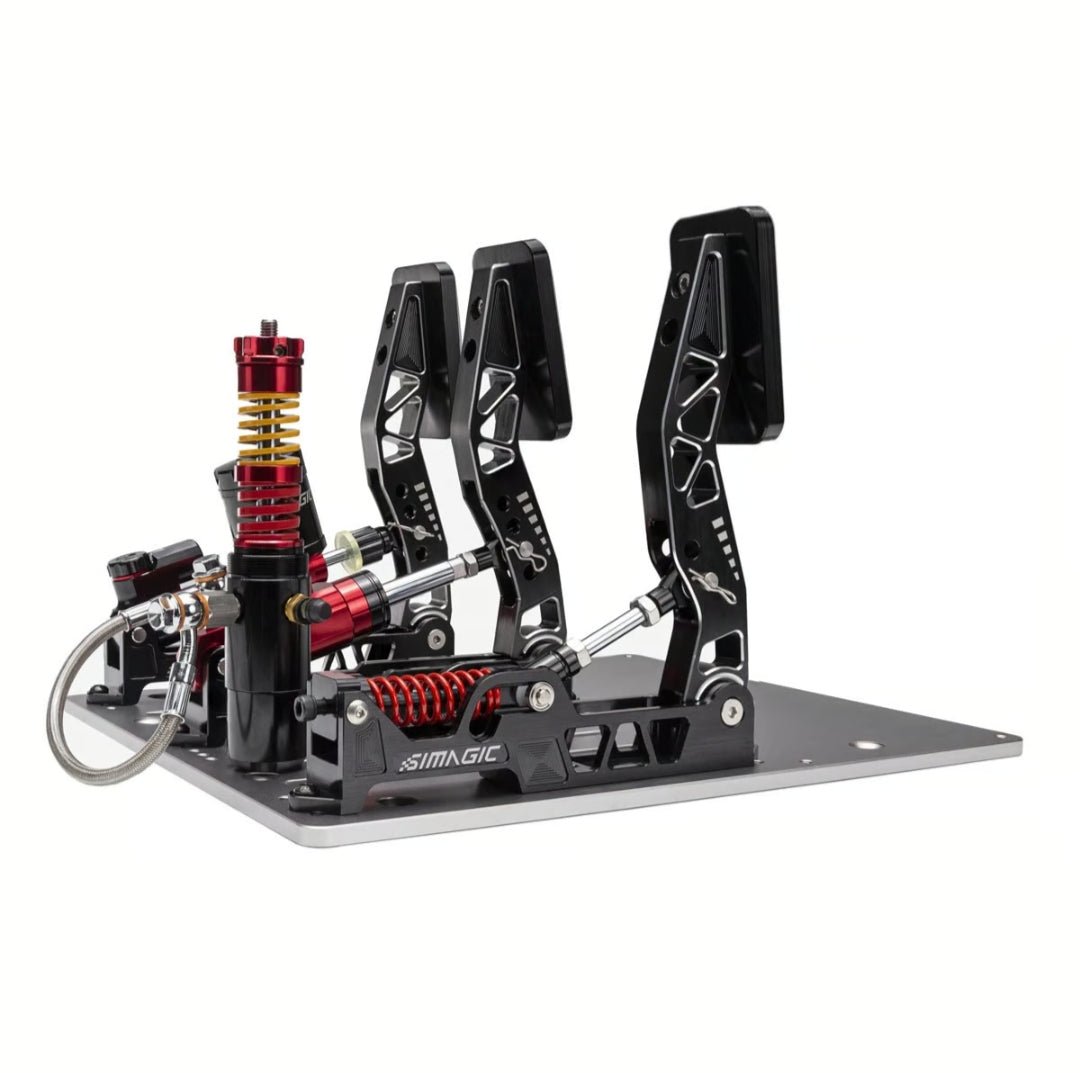

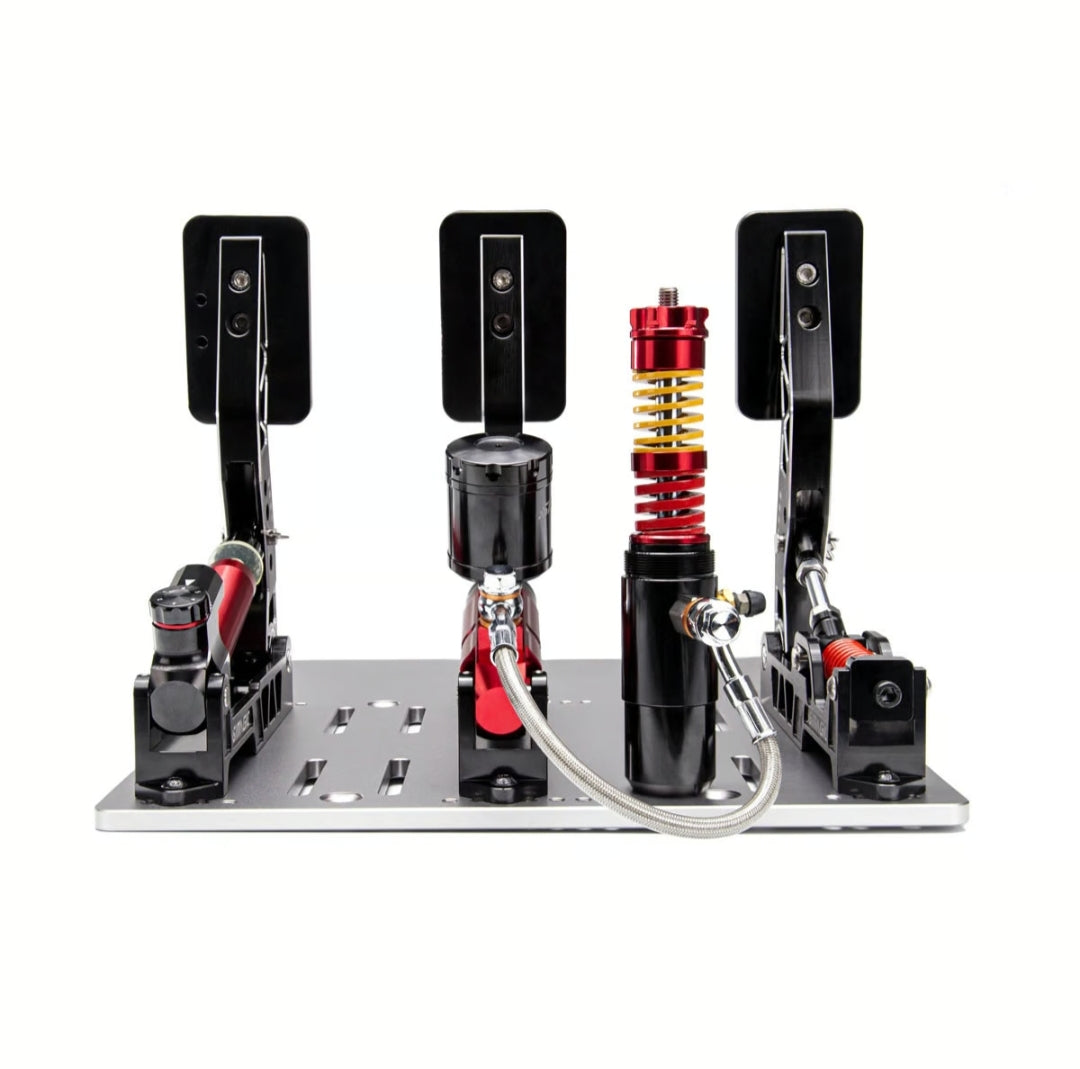

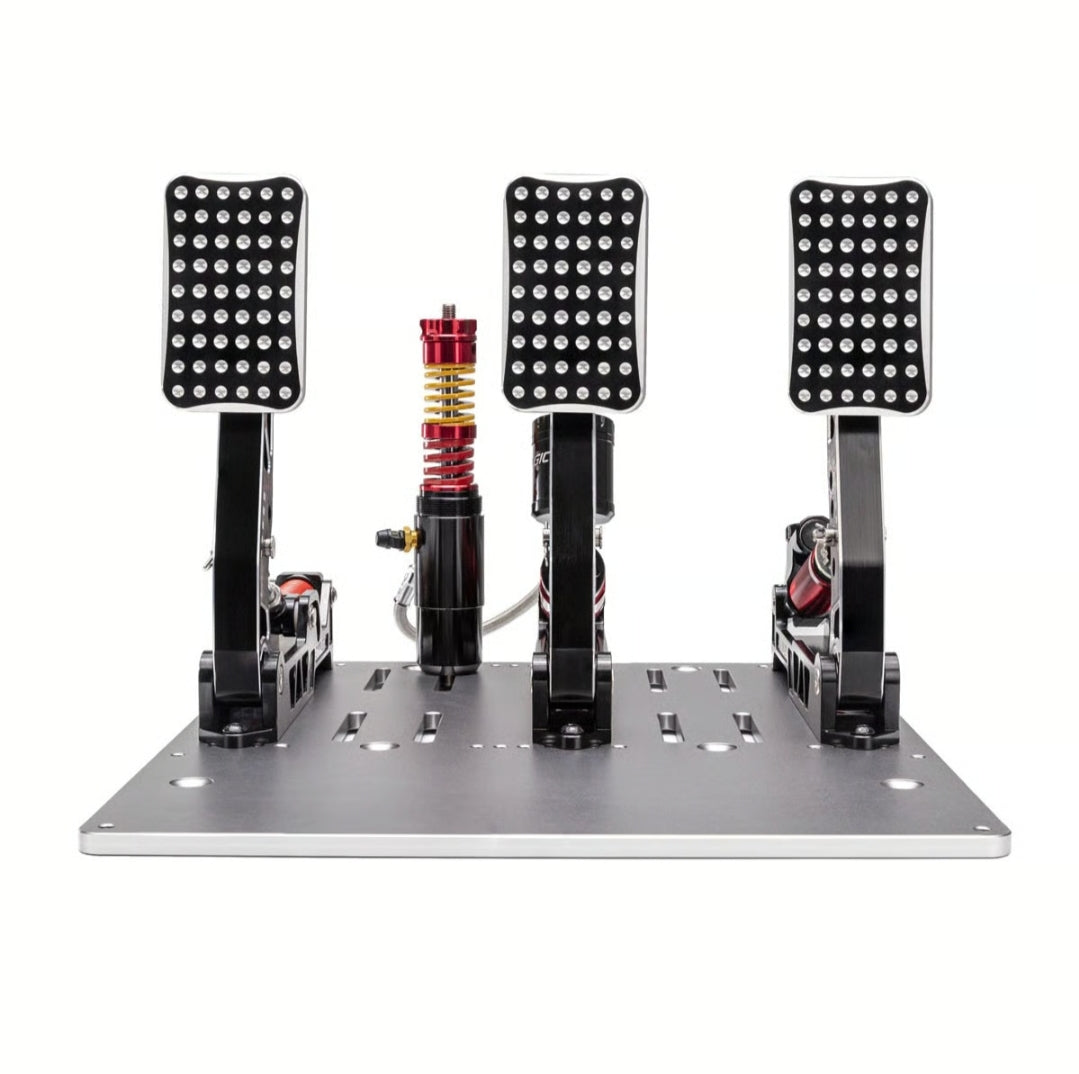

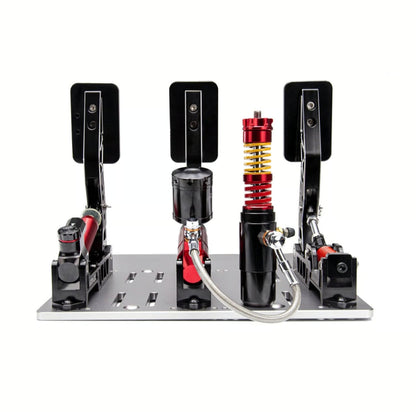

Simagic P2000 Pedals Hydraulic Loadcell

A Faithful Replica of Race Car Cylinders

Co-developed with Motorsport Engineers, Providing You with Authentic Race Car Feel

1mm

Front Deadzone

3 in 1

Integrated Throttle

1 : 1

Real Brake Cylinder

“3-in-1” Throttle Cylinder

An integrated design that offers easy adjustments of damping, travel, and force Loadcell sensor ensures precision and stability.

Real brake cylinder

The Brake System consists of a main pump and an auxiliary pump, connected via braided steel lines. Install your Auxiliary pump without limitations of angle and position. 4 spring options with different force level are included.

Patented Concave Clutch Structure

The unique Concave Clutch Design offers an augmented feeling when hitting the bite point. Loadcell sensor ensures precision and stability. 3 spring options are included.

Various Accessories, Versatile Applications

Apply accessories, upgrade your P2000R, achieve optimal and versatile experiences. Whether you are looking for the driving feel of a “family car” or a “race car”, you will always be satisfied with real authenticity. “Travel Limiter”, “Heel Stop”, “Foot Rest”, and more accessories are now available.

Next Gen Driver: SimPro Manager

You can customize the deadzones and the linearity (output curves) via SimPro Manager. All settings will be recorded automatically and can be saved manually into profiles. The settings apply to any simulators. No further in-game setting is needed

Technical Parameters – P2000-R Hydraulic Pedals

Product Name
P2000-R Hydraulic Pedals

Resolution
12 bit (4096) Full Axis Output

USB Connection
PC, Simagic Wheelbase

Adjustable Travel
Supported

Adjustable Spring Force Level
Clutch, Brake

Loadcell Sensor
Throttle, Brake, Clutch

Hydraulic Cylinder
Included

Pedal Plate
Anodized Aluminum Alloy

Position Adjustment
Supported

Adjustable Damping
Supported

Adjustable Linearity
Included

Adjustable Brake Force
Supported

Adjustable Deadzones
Supported

Pedal Control Box
Included

Building Material
CNC Aluminum Alloy

Dimensions (Length x Width x Height)
326mm x 380mm x 258.84mm
