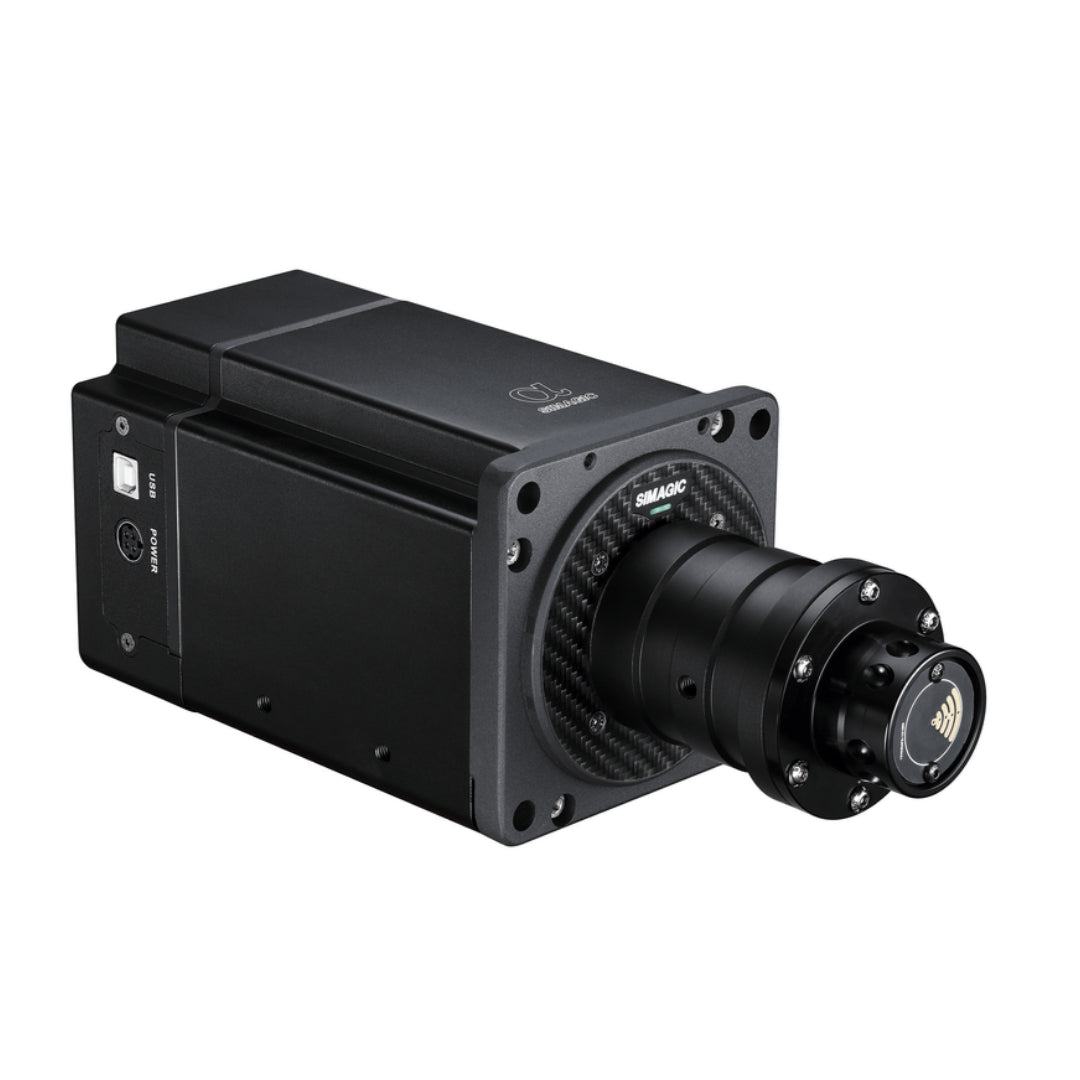

Simagic Alpha Wheelbase (15NM)

Alpha Direct Drive Wheelbase

15Nm Pro Level Direct Drive Wheelbase
The #1 Choice of Champions

True Direct Drive Servo Motors

Custom 5-pole servo motors ensure the best Direct Drive experience possible；
15 Nm maximum torque, delivers strong and detailed Force Feedback；
1ms Ultra-fast response time with virtually no latency

Full Metal Construction

CNC Machined Aluminum housing Polished using sandblasting and oxidation process. The sleek black exterior echoes the unique performance aspects of the Alpha Base Keep Calm and Go Wild.
Discover the new 23 Nm servo motor from Simagic and enter a world of details never seen before . Benefit from an optimization of the incoming signal for a precise and crystalline force feedback thanks to AI (artificial intelligence).

Patented
Wireless Power Supply Wireless Transmitter Modules. Wireless Steering Modules. Simagic sets you free by eliminating wire clutters.

Force Feedback Redefined

New gen CPU Architecture with a real-time processor.262144 ppr encoder resolution 40Khz response rate 3rd Gen filter with optimized algorithms All of which allow you to experience optimal FFB like no other.

Next Gen Driver: SimPro Manager

If you are a beginner,plug and play with our pre-sets. If you are a hardcore racer, then there are various FFB settings that await your exploration.

And there are still more to come.Stay tuned.

Technical Parameters
Alpha

Motor Type
Custom 5-pole servo motors

Maximum Torque
15Nm

Wireless Power Supply Tech
Included

3rd Filter
Included

Encoder Resolution
262144 ppr

Processor Frequency
200 MHz

Response Rate
40 KHz

Mounting Bracket
Optional

Simagic Quick Release
Optional

Building Materials
Aluminum Alloy, Carbon Fiber

Dimensions (Length x Width x Height)
281mm x 110mm x 110mm

Mounting Holes
M6 x 4 Threaded Holes

Net Weight
7.9kg

In the Package
Installation Kit, PSU, USB Cable
