The MOZA R3’s 3.9Nm motor consistently delivers class leading direct drive power and precisely detailed force feedback easily outperforming traditional 3Nm bases.
Moza Racing

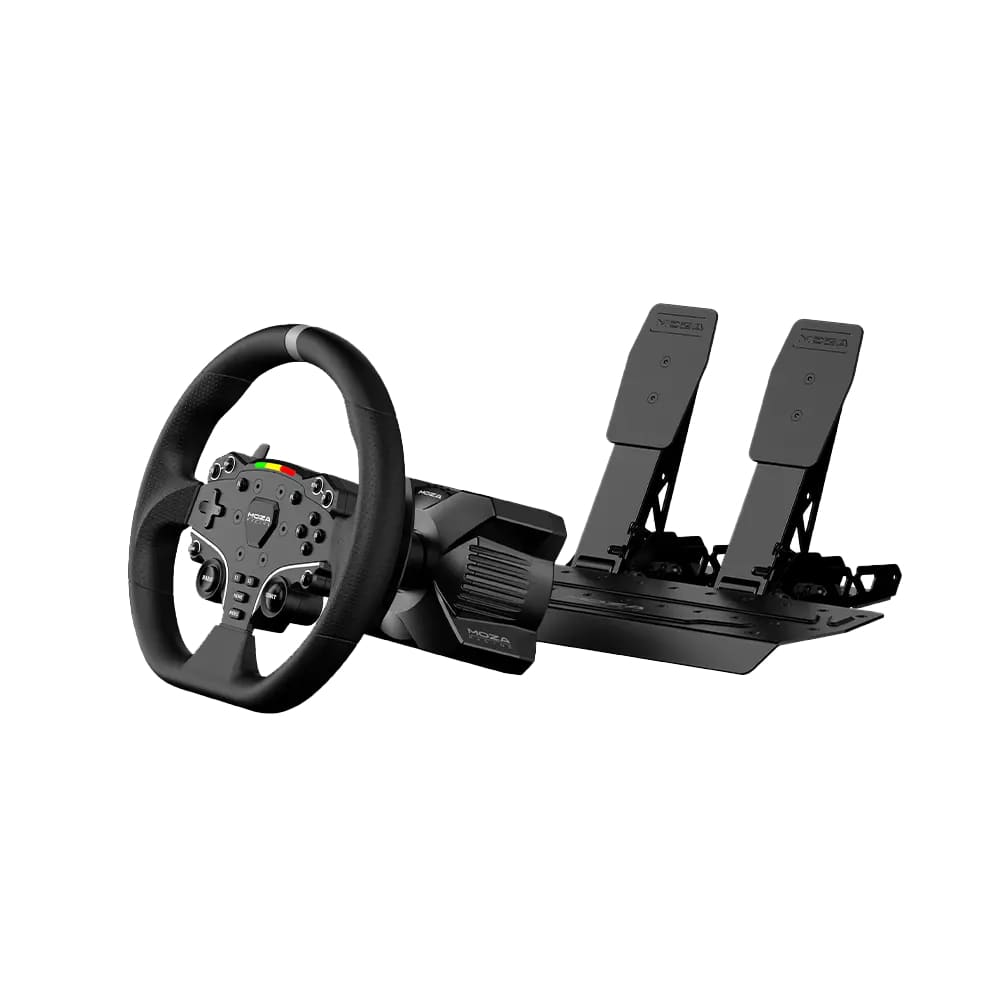

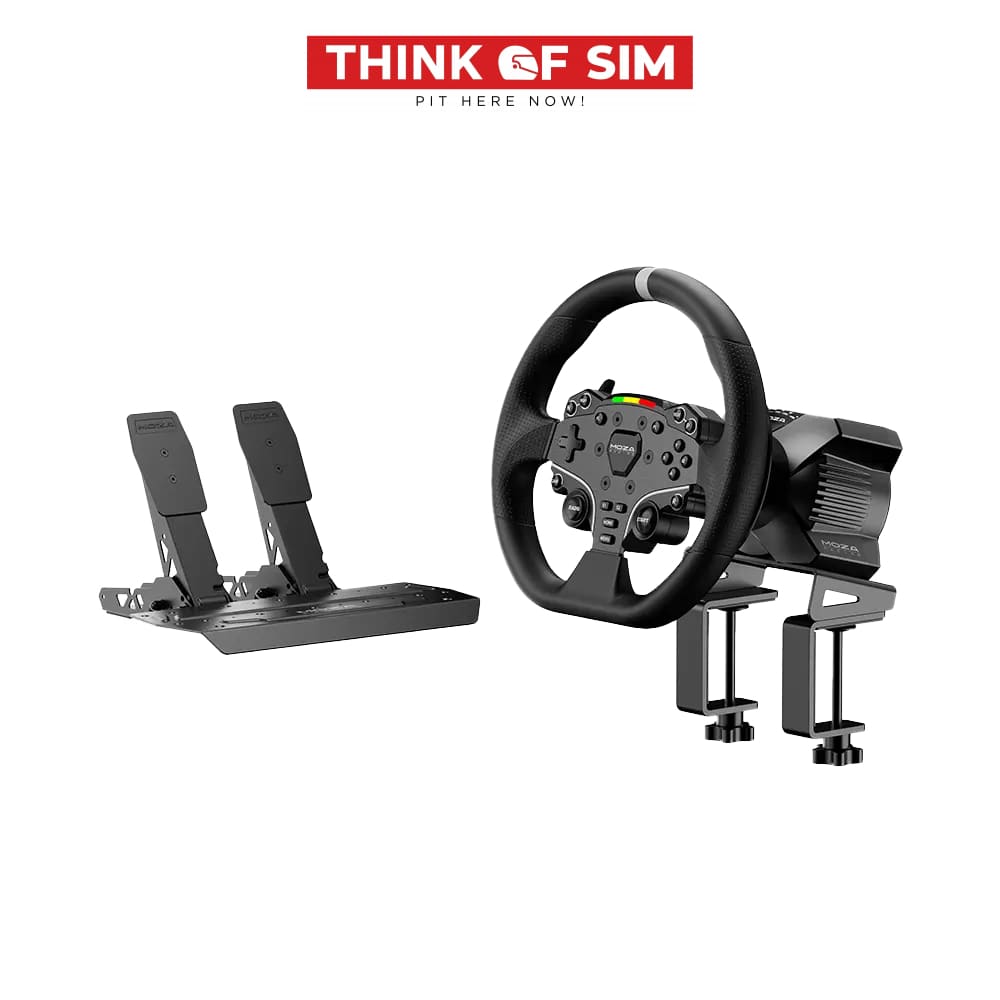

Moza R3 Racing Wheel and Pedals for PC Only
Moza R3 Racing Wheel and Pedals for PC Only
Couldn't load pickup availability
Share

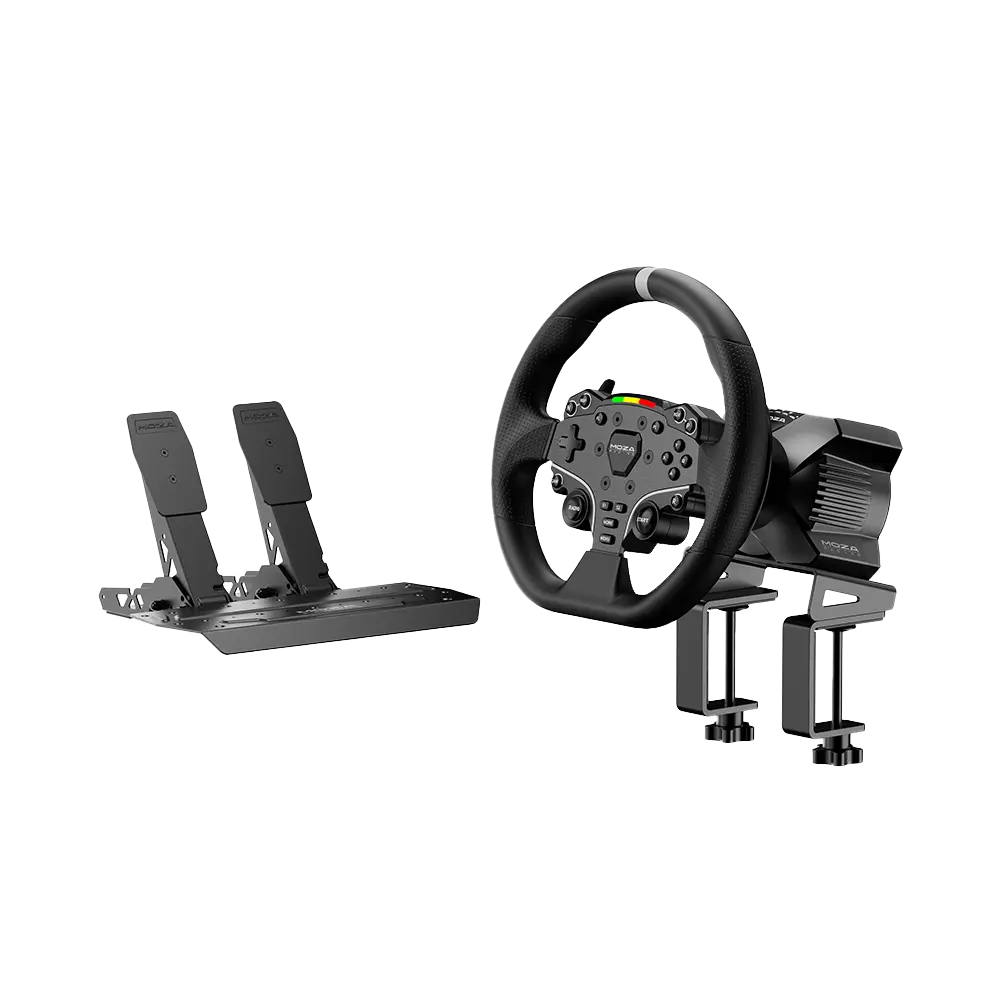

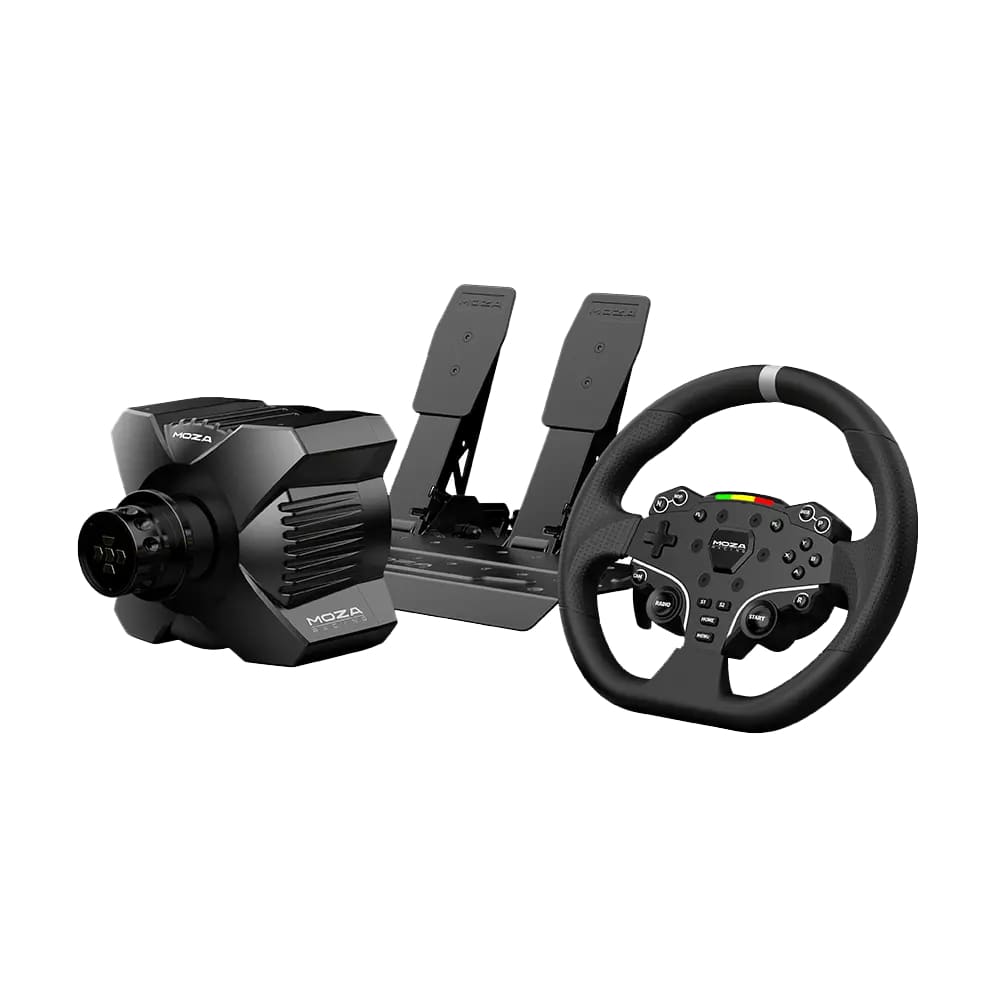

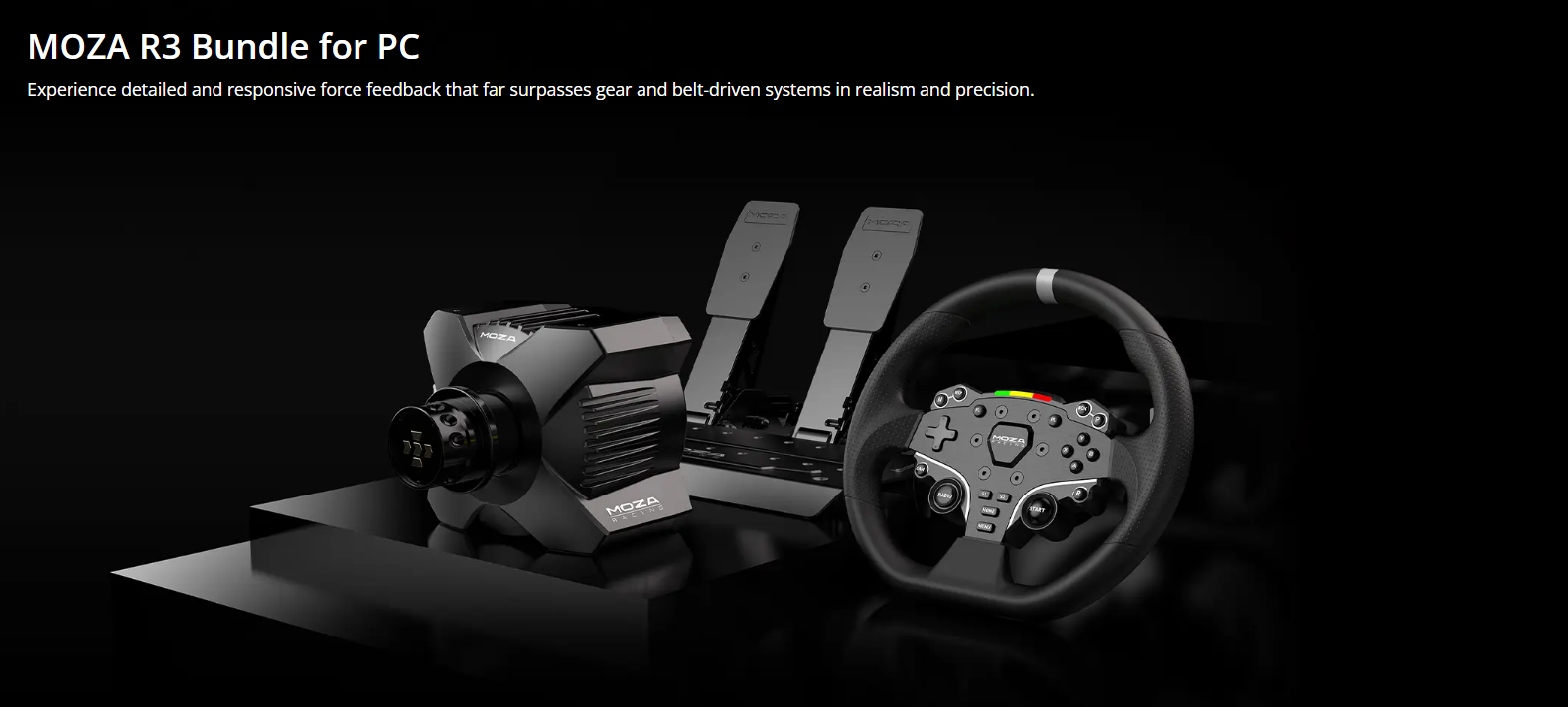

R3 Racing Wheel and Pedals for PC

3.9Nm DD Servo Motor

Aviation-grade Aluminum

ISF PU Grips

Aluminum
Quick-Release

Full High-Strength Steel

Ultra-low Torque Ripple & Groove Torque

Mobile App Control

MOZA Pit House Control Center
Precise 3.9 Nm
Direct-Drive Powerhouse
Compact Adaptable Design
From desktop to fully dedicated rigs the R3’s compact design can be easily adapted to fit any scenario regardless of available space.

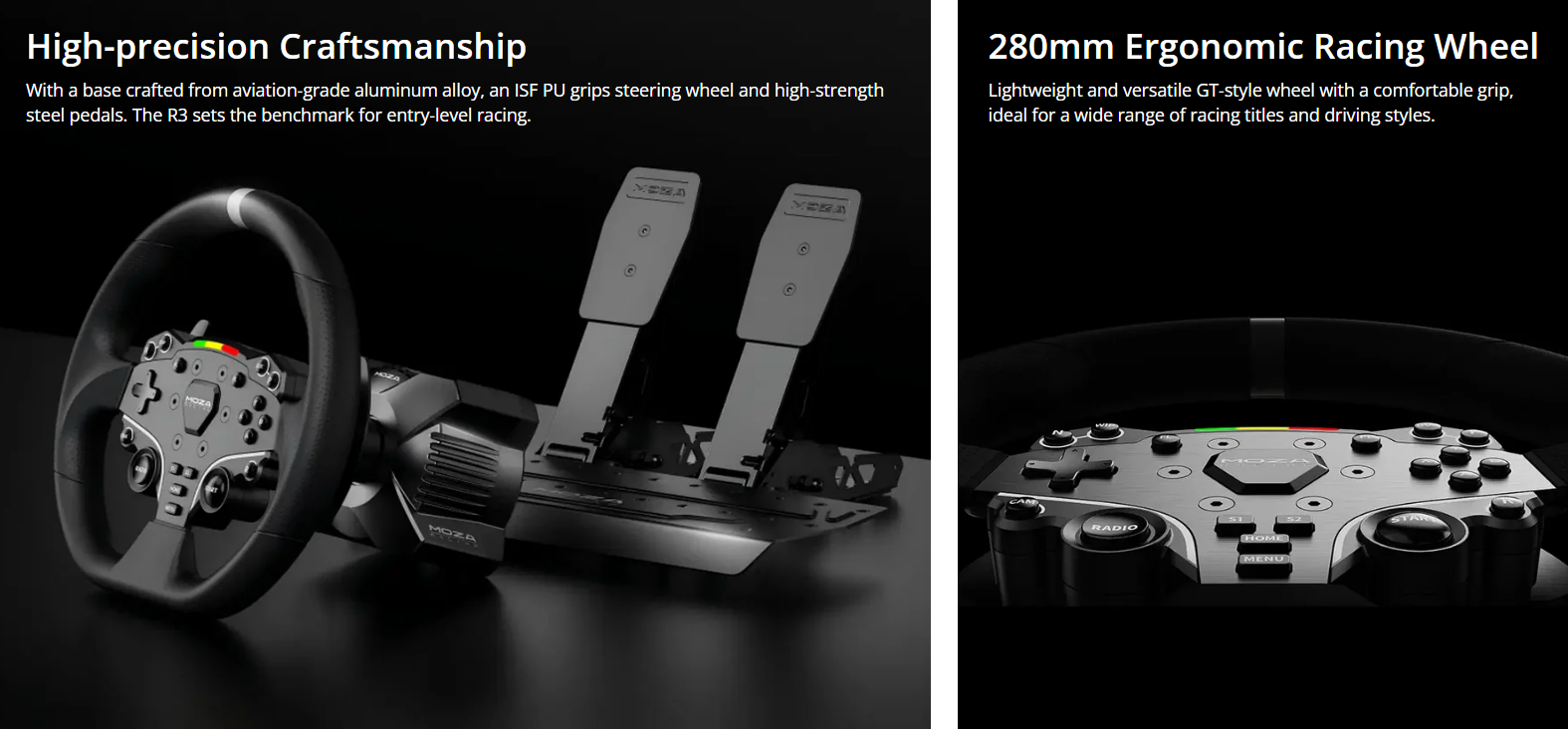

High-precision Craftsmanship
With a base crafted from aviation-grade aluminum alloy an ISF PU grips steering wheel and high-strength steel pedals.
The R3 sets the benchmark for entry-level racing.

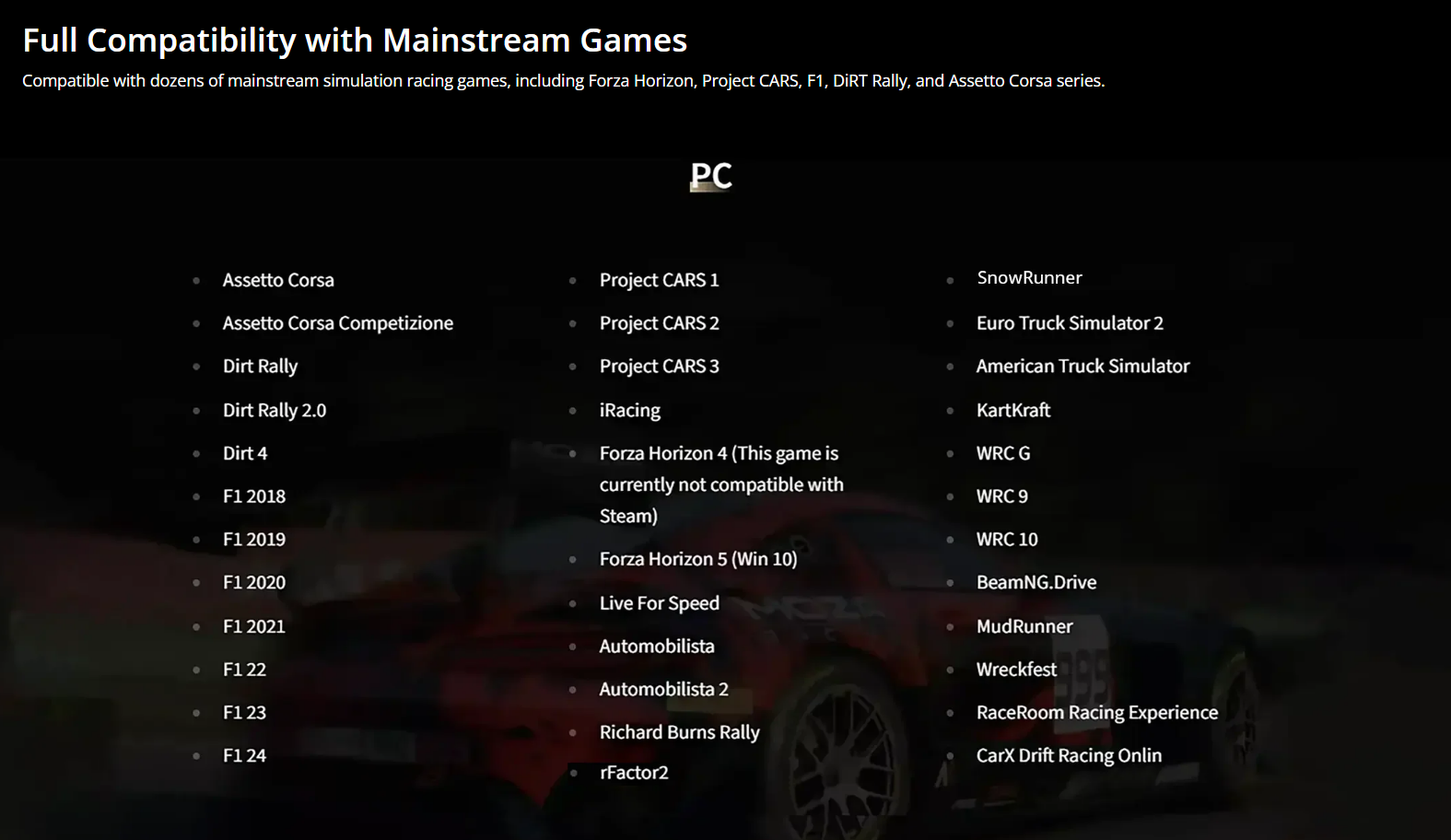

Full Compatibility with Mainstream Games
Compatible with dozens of mainstream simulation racing games, including Forza Horizon, Project CARS, F1, DiRT Rally, and Assetto Corsa series.
PC Only

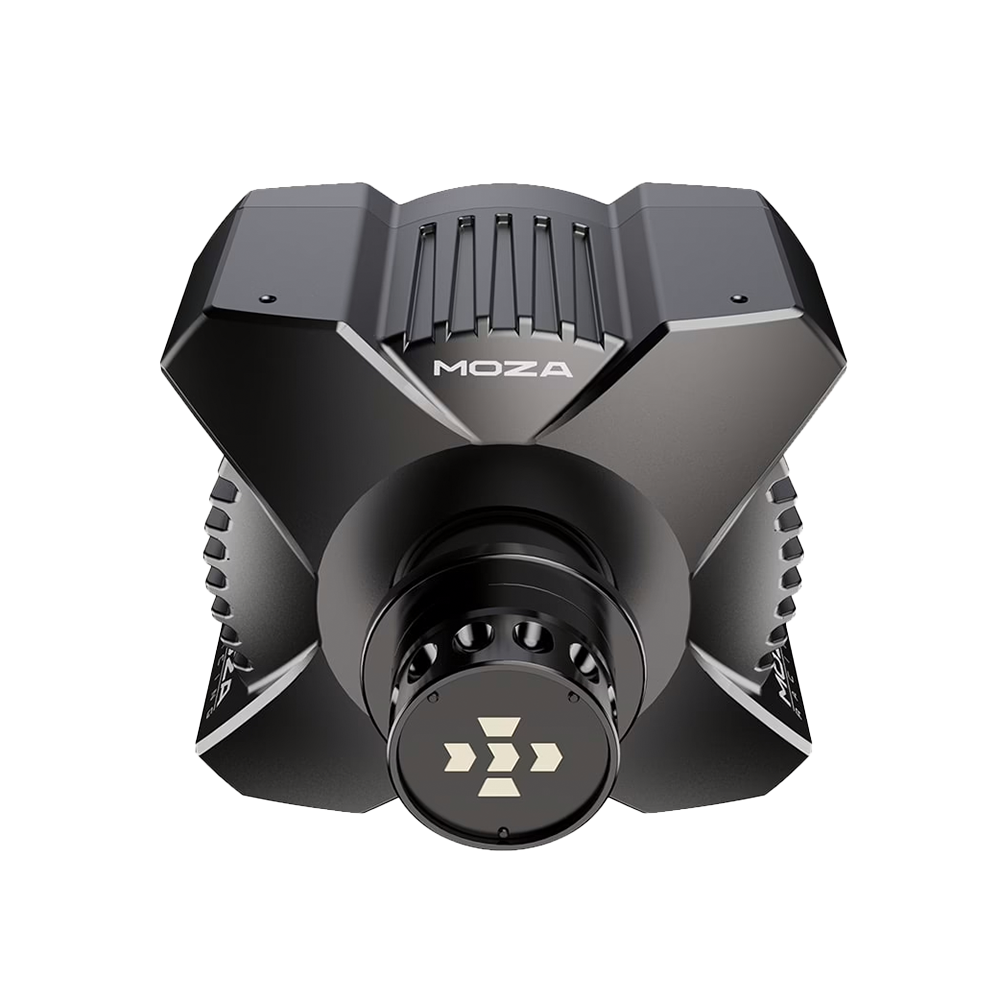

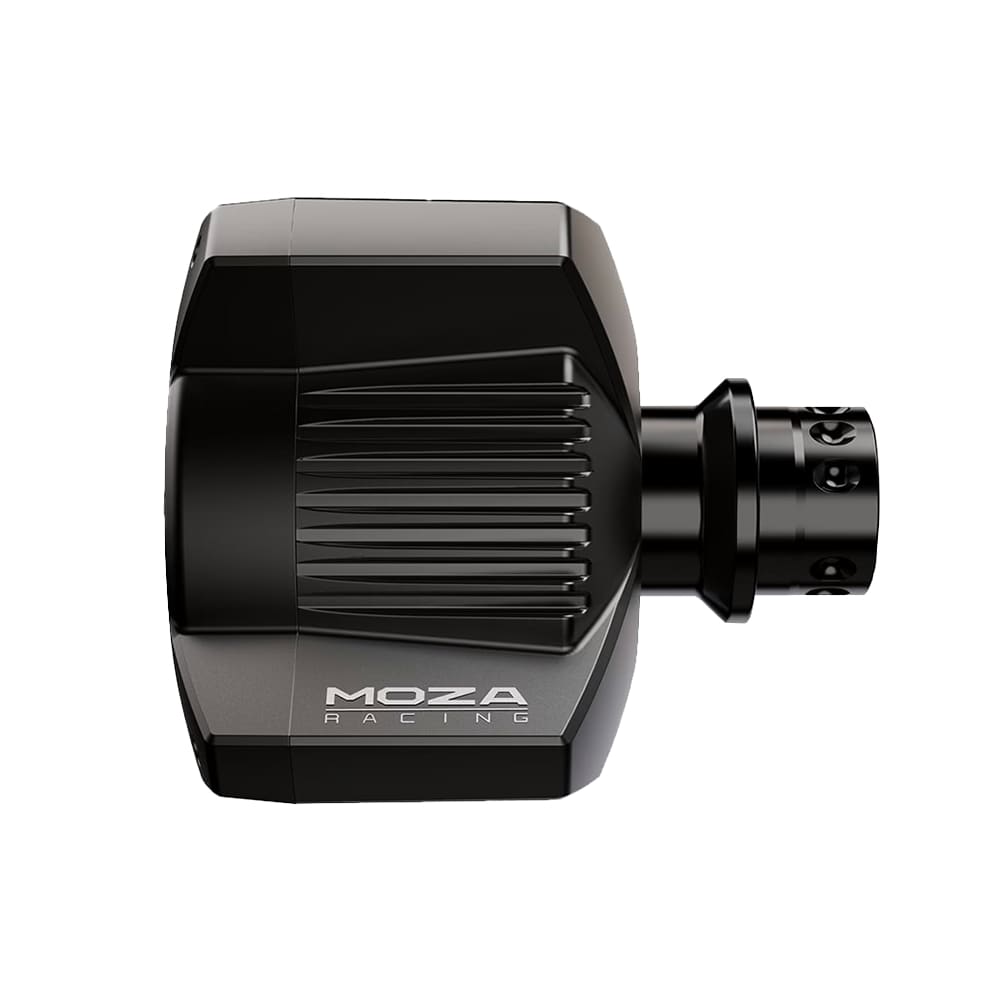

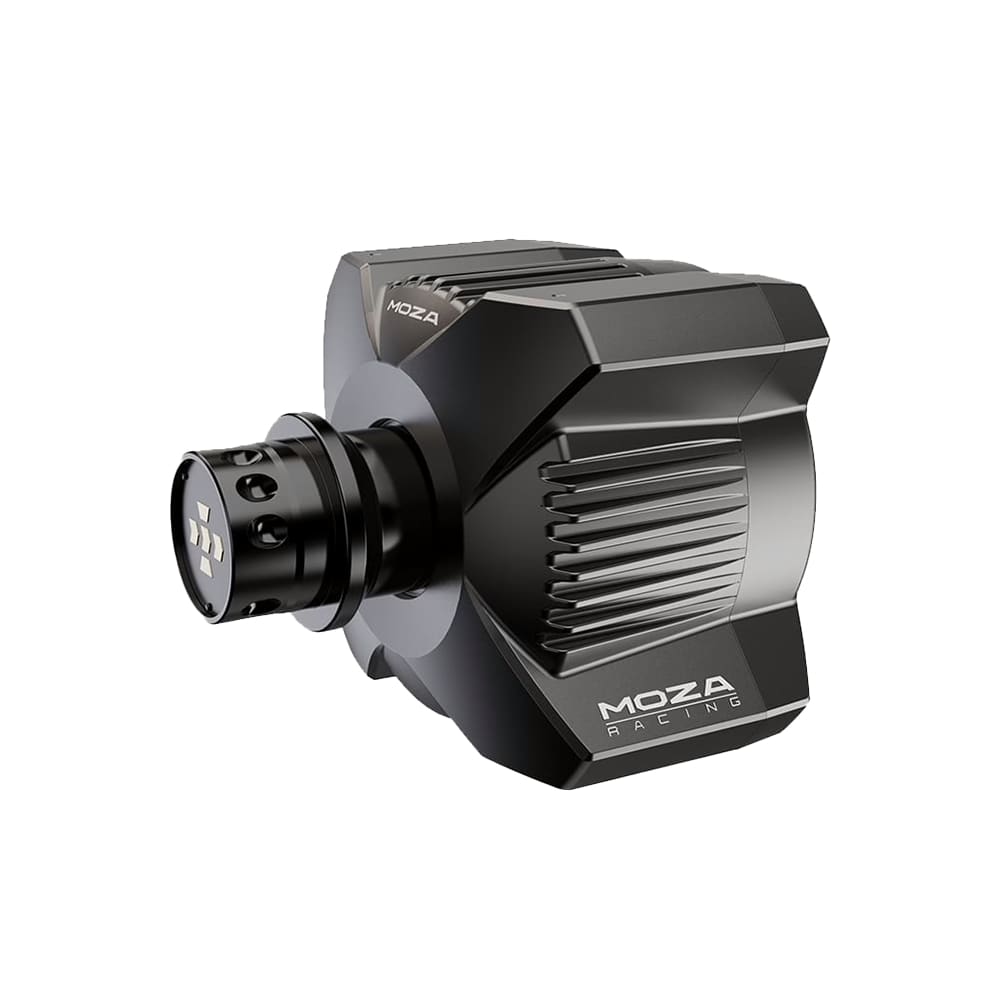

MOZA R3 DD Wheelbase

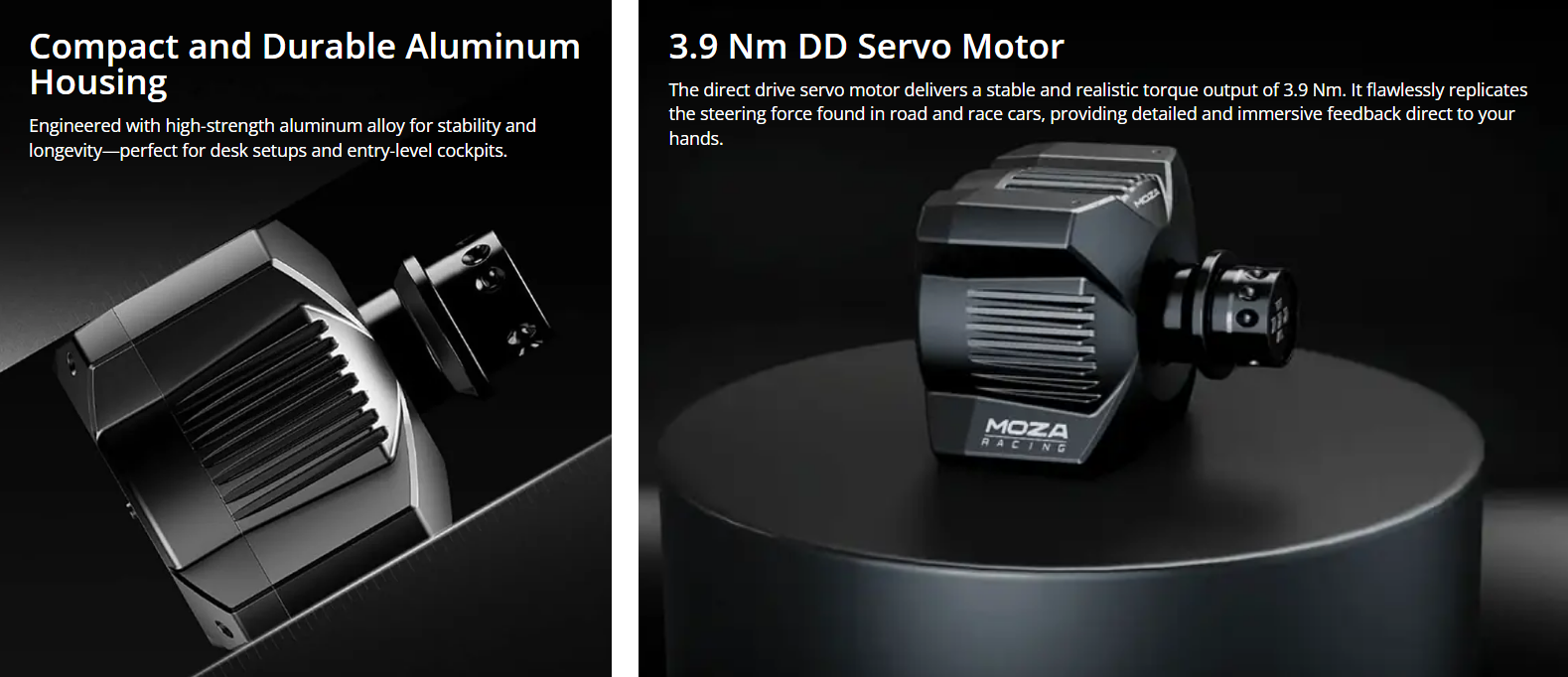

3.9 Nm DD Servo Motor
The direct drive servo motor delivers a stable and realistic torque output of 3.9 Nm. It flawlessly replicates the steering force found in road and race cars, providing detailed and immersive feedback direct to your hands.
Innovative X Shape Design
The MOZA R3 features an innovative X shape design, combining striking aesthetics with a unified motor housing for improved cooling efficiency and lasting performance.
Aviation-grade Aluminum
Crafted entirely from aviation-grade aluminum alloy, the R3 base boasts a new sleek appearance while ensuring superb durability and endurance.
The Maximum & Minimum Philosophy
The MOZA R3’s compact body and ultra low power consumption delivers maximum torque and excellent temperature control performance.
Ultra-low Torque Ripple
& Groove Torque
Our engineers have achieved the ultimate steering force feedback thanks to the R3’s ultra low torque ripple and groove characteristics.
Intelligent Temperature Control System
Our advanced intelligent temperature control system delivers a constant and reliable performance under all conditions.
15-bit Encoder
The ultra high 15 bit encoder ensures a highly accurate and realistic steering feel.
Mobile App Control
Real time on the fly adjustments can be made using the MOZA mobile app including hassle free setup transfers to new devices.
MOZA ES Lite Steering Wheel
Durable ISF PU Grips
Our non-slip, sweat-proof durable grips offer a premium feel whilst being environmentally friendly.
Aluminum Wheel Rim
The solid aluminium alloy rim ensures maximum rigidity, durability and immersion.
MOZA QR System
The Moza Racing QR system makes swapping wheels both easy and fast and is widely regarded as the best in the industry.
22 Customizable Buttons
22 fully customizable buttons allow for racers to make all of the on-board adjustments they need while in the heat of battle.
Flow Shift Light
Fully customisable flow shift Rpm LEDs add a unique touch to your racing setup.

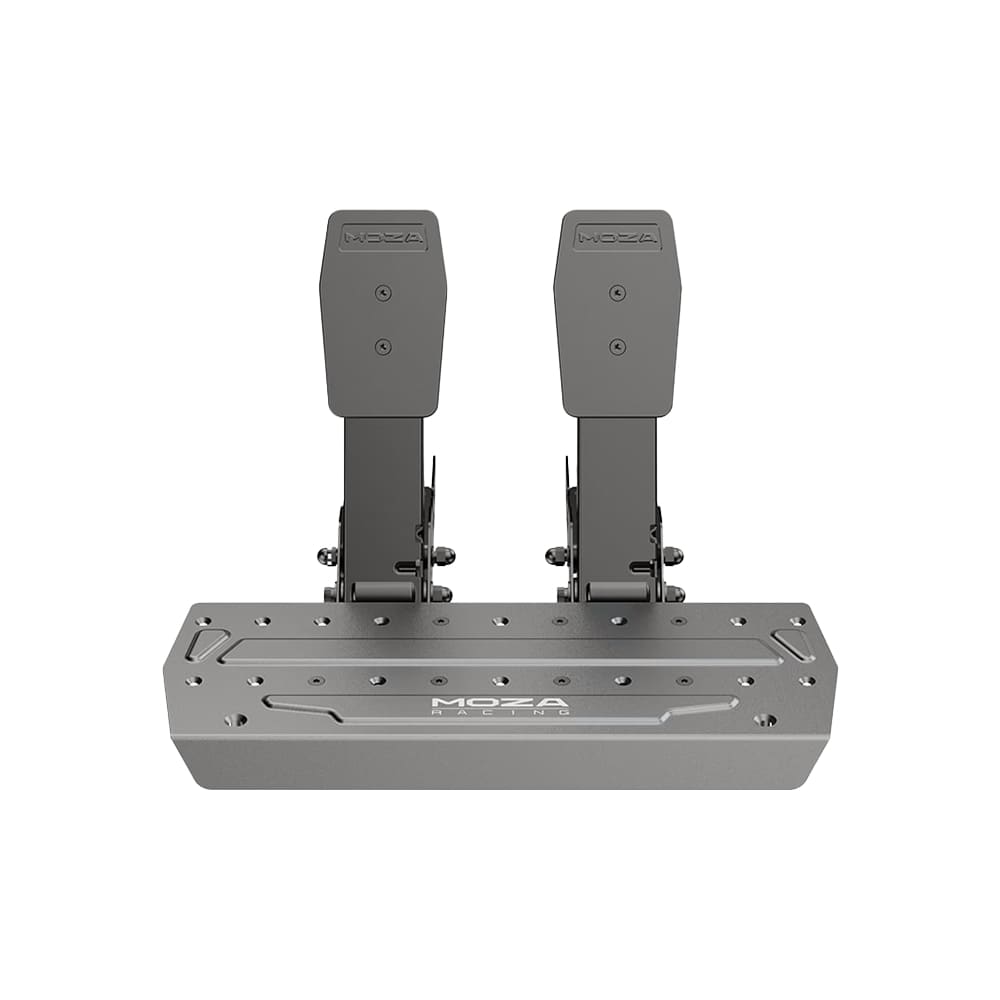

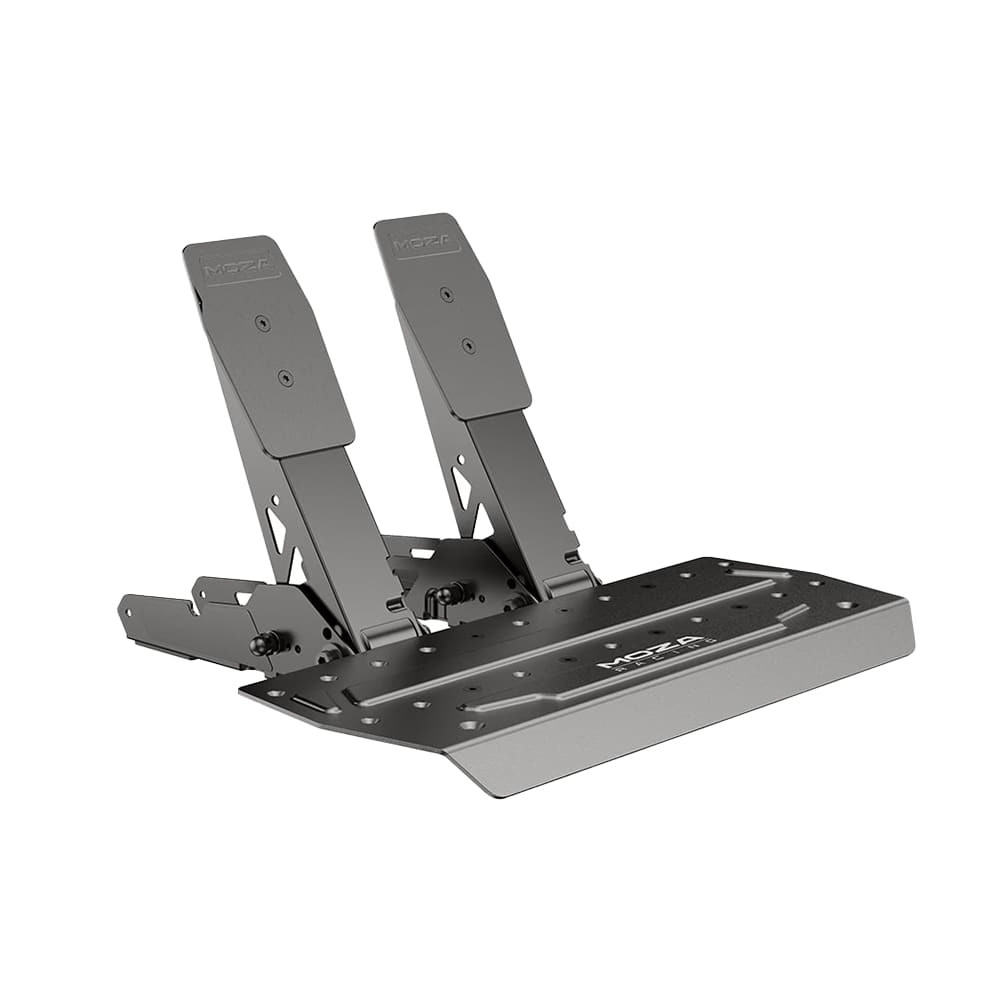

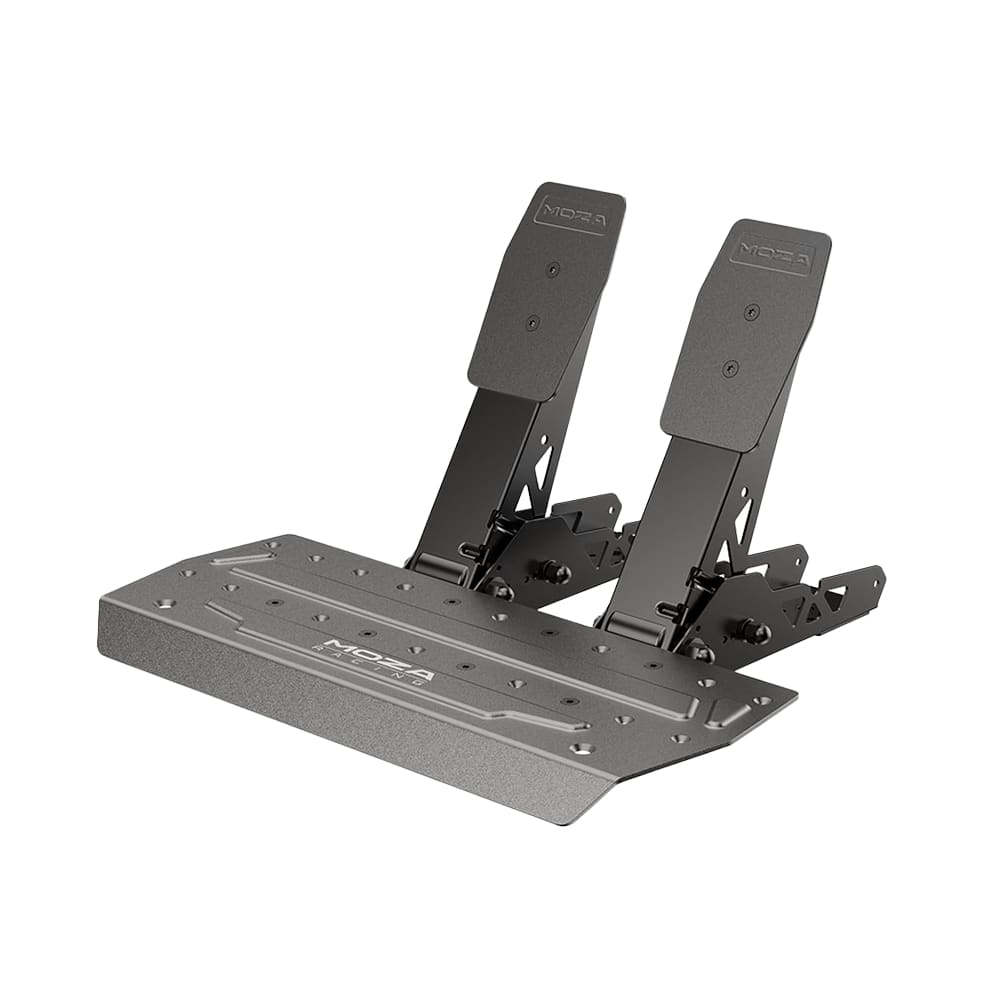

SR-P Lite Pedals
Pedal Set of 2- No Clutch
Full High-strength Steel
High strength steel ensures rock solid performance and durability.
High Precision Hall Sensor
A high-precision hall sensor ensures accurate maintenance free performance.
For the Pros, or for Home
Our anti-slip pad design ensures consistent braking and throttle control.

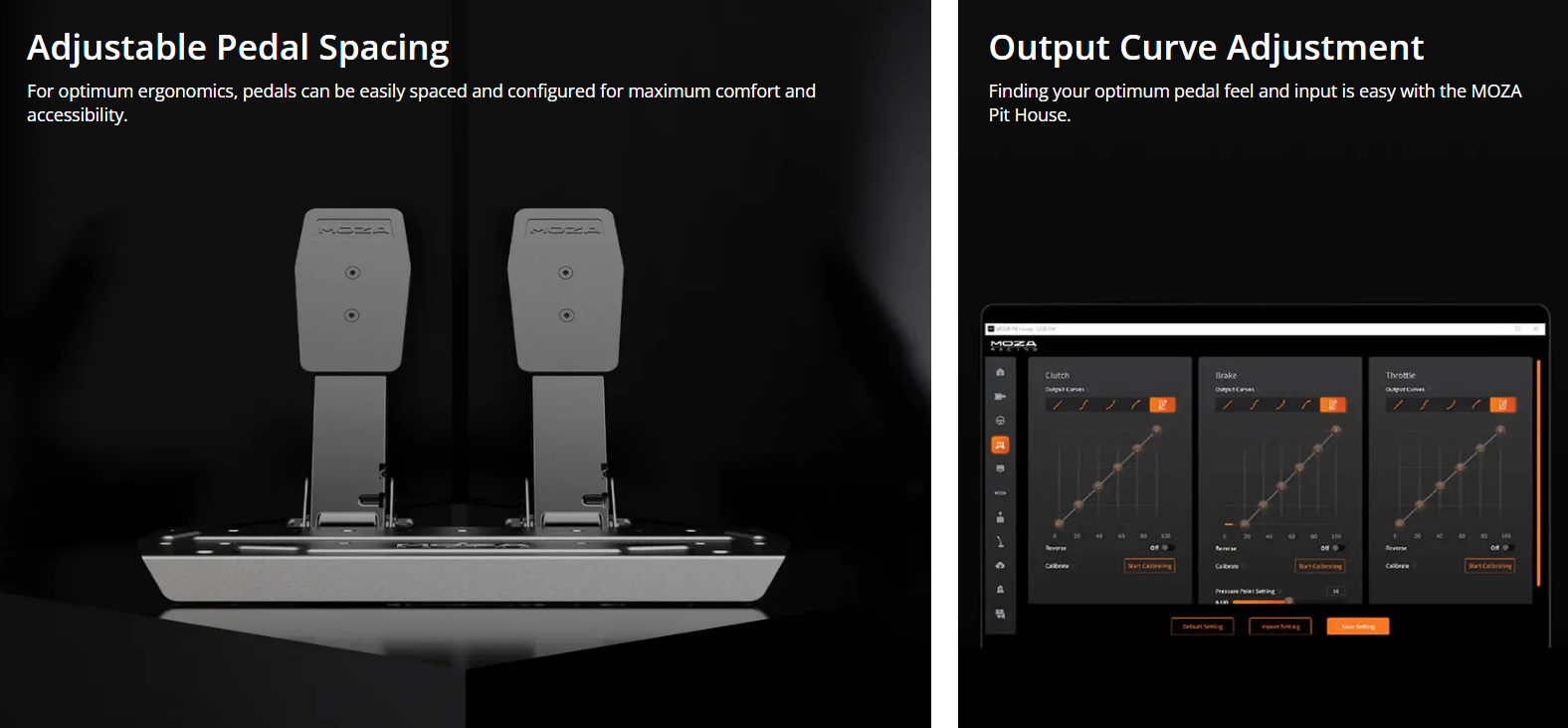

Adjustable Pedal Spacing
For optimum ergonomics, pedals can be easily spaced and configured for maximum comfort and accessibility.
Output Curve Adjustment
Finding your optimum pedal feel and input is easy with the MOZA Pit House.
SPECS
DD R3
Drive Type
Direct Drive
Max Wheel Rotation
Limitless
Housing Material
Aviation Aluminum Alloy
Color
Black
Peak Torque
3.9 Nm
Rated Power
60W
Input Voltage
110V~220V AC —>12V DC
Encoder Resolution
15 bits
USB Refresh Rate
1000Hz
APP Functionality
Supported
Quick Release
Supported
Connection Ports
Power, DC Input, Pedal, USB, Dash
Accessories
Manual and Warranty Card, Power Supply, Data Cable, Toolkit
Mounting Method
4 holes on the bottom
Table Clamp
Included
Online Firmware Upgrade
Supported
ES Lite Steering Wheel
Platform
PC Only
Grips
ISF PU
Face Plate Material
Aluminum Alloy
Shifter Paddle Material
Aluminum Alloy
Size
280mm
Buttons
22
RPM LED Light
10 High Brightness LED RGB Beads
Intelligent Telemetry
Supported
Fully Adjustable RPM LEDS through MOZA Pit House
Supported
Release Method
MOZA Quick Release
SR-P Lite Pedals
Material
High-strength Steel
Plate Material
High-strength Steel
Color
Black
Throttle Sensor
Hall Sensor
Pedal Spacing
Adjustable
Pedal Plate Height
Adjustable
Pedal Input Adjustment
Supported
Pedal Input Reversal
Supported
Pedal Output Curve Adjustment
Supported
WHAT'S INBOX
- R3 DD Wheelbase x1
- ES Steering Lite Steering Wheel x1
- SR-P Lite Pedals (No Clutch) x1
- Table Clamp
- 15 Degree Desktop Mounting Clip
- Power Adapter
- Power Cord
- USB Cable
- M4*10 Countersunk Screws x12
- USB A to B Cable
- M8*12 Pan Head Hex Screws x3
- M6*20 Hex Head Bolts x2
- M8 Nuts x3
- M6x12 Hex Head Cap Screw x4
- Spacers x2
- 2.5mm Allen Wrench x1
- 7mm Open-end Spanner x1
- 5mm Allen Wrench x1
product compatibility
R3 Wheelbase | |
ES Standalone | √ |
ES for R3 Bundle | √ |
CS V2 Wheel | √ |
KS Wheel | √ |
TSW Wheel | √ |
RS V2 Wheel | √ |
GS V2 Wheel | √ |
FSR Wheel | √ |
CS V1 Wheel | x |
RS V1 Wheel | x |
GS V1 Wheel | x |
SRP Lite Pedals | √ |
SR-P Pedals | 乄 |
CRP Pedals | 乄 |
SGP Shifter | √ |
HBP Handbrake | √ |
HGP Shifter | √ |
E-Stop Switch | √ |
CM Dash | √ |
RM Dash | x |
√ | Direct plug-in (Including pedals, shifters, and handbrake, which can be directly plugged into the base or directly connected to a PC via USB). |
乄 | Directly connect to PC via USB |
× | Not compatible |
