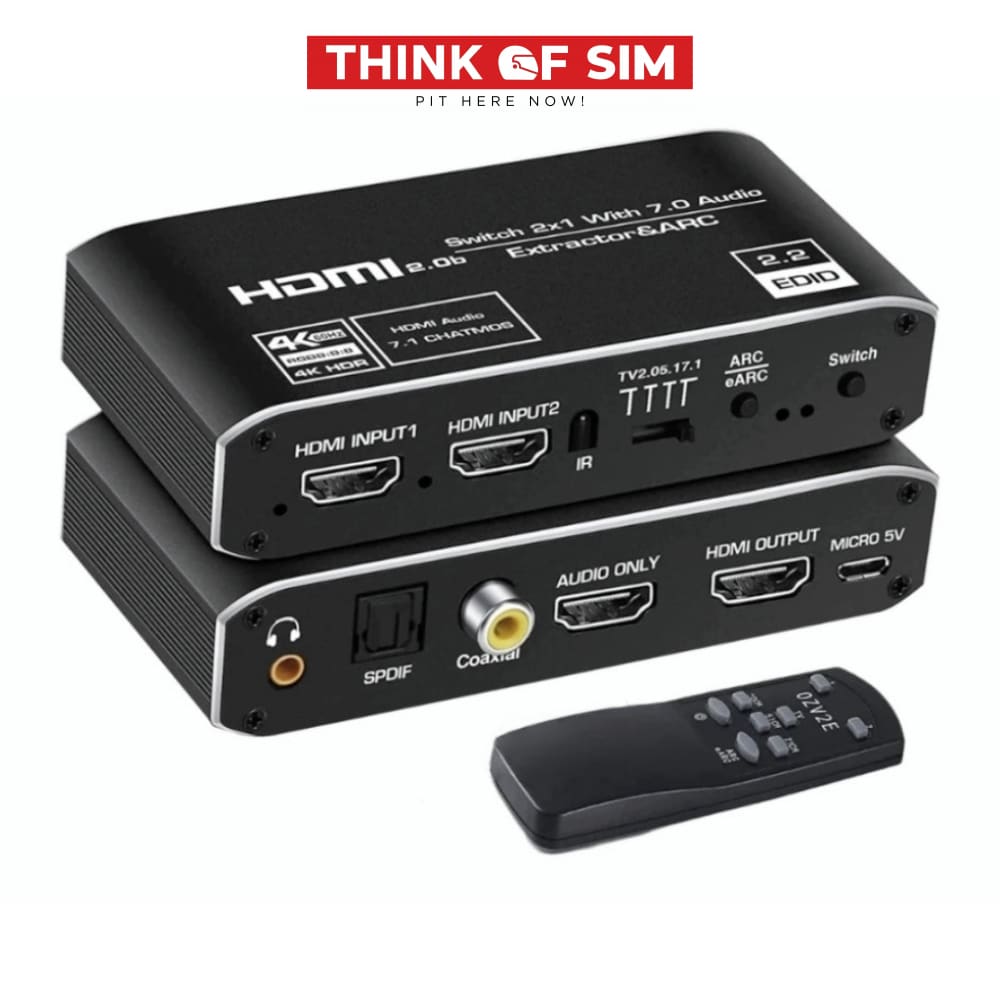

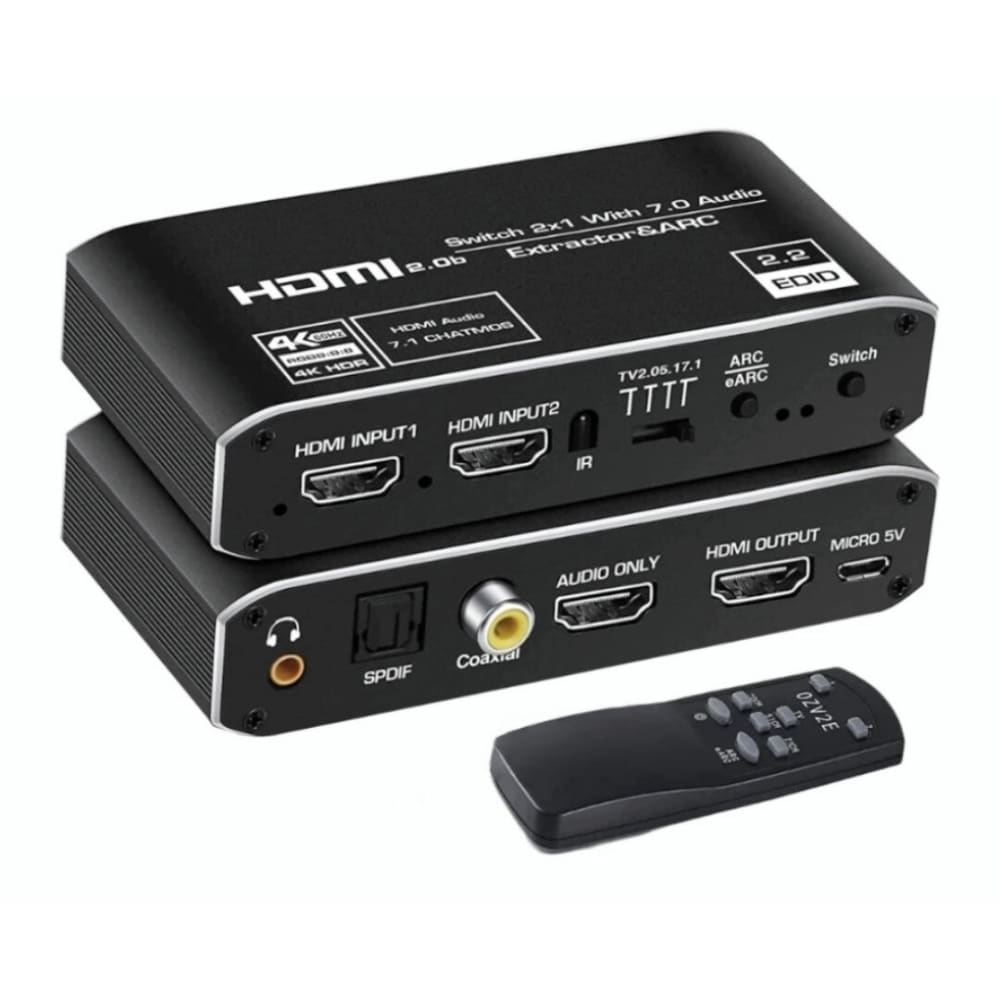

HDMI Extractor 7.1 Atmos eARC Audio HDMI Splitter

HDMI Extractor 7.1 Atmos eARC Audio HDMI Splitter

Regular price 1,880.00 ฿
Regular price Sale price 1,880.00 ฿
Sale Coming Soon
Taxes included. Shipping calculated at checkout.

HDMI 2.0B & HDCP 2.2,2x1 4K@60Hz HDMI Switch Audio Splitter with Dedicated Earc for 7.1CH & Arc for 5.1CH Coaxial & Optical Toslink Support RGB 8:8:8( 7.1CH Dolby Atmos), EDID, IR remote control, HDR 10.

Support 480i/480p/576i/576p/720P@50/60Hz/1080P@50/60Hz/4Kx2K@30/60/120Hz 24Bit RGB 8 :8 :8 /YcbCR4 :4:4 (4K@60hzYUV 4:4:4)

Max Bandwidth Per Channel: 600MHz Max Baud Rate Per Display: 18.5Gbps

Compatible with HDR 10, HDMI 2.0b, HDCP2.3/2.2/1.4/1.3/1.2/1.1

HDMI Switch Support LPCM 7.1CH , Dolby True HD,DTS -HD,AC 3,DTS ,DSD, Dolby Digital Plus and Dolby Atmos audio formats

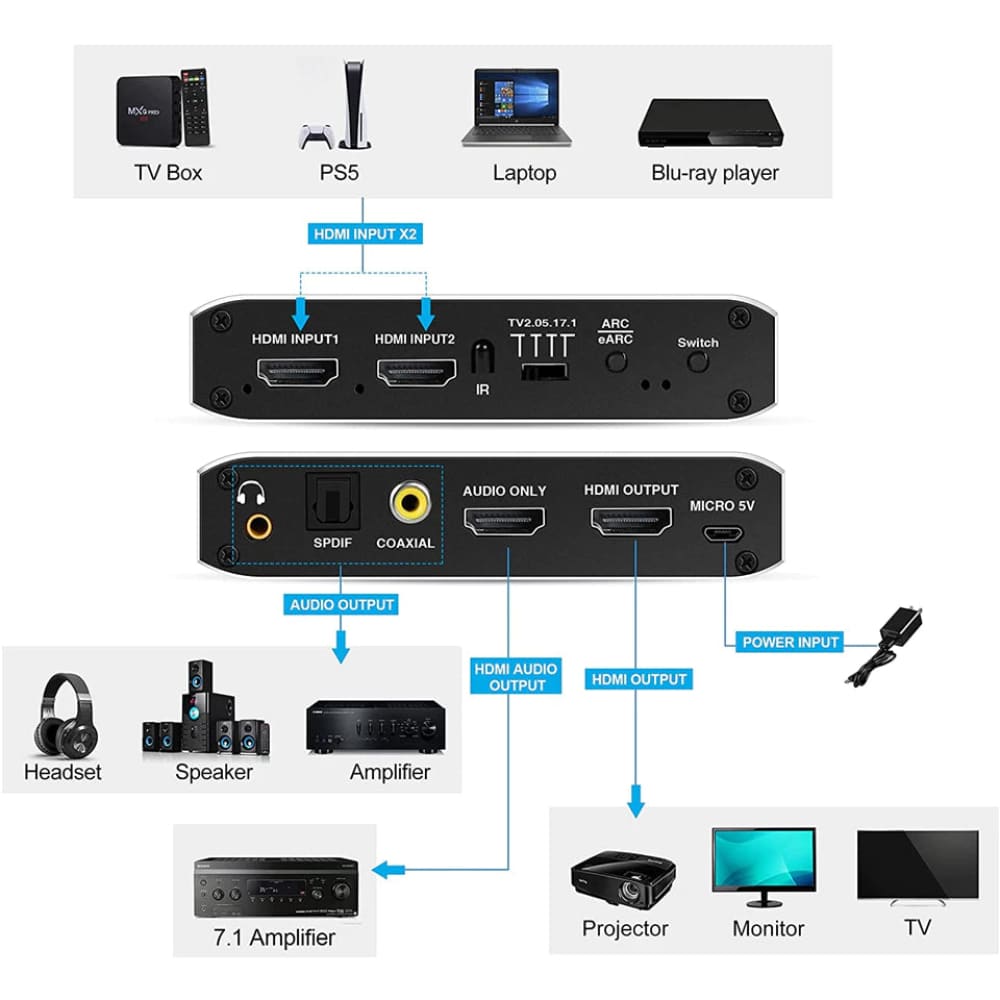

HDMI input, compatible with HDMI devices: such as PS 4/Roku/Fire TV/Blu-ray player/Apple TV/XBOX/Nintendo Switch/PS4Pro/Xbox. 3 60 / Xbox One X / PS 3 / Beamer / Laptop and other HDMI signals. amplifiers, speakers, headphones and other audio equipment

Support 24bit deep color per channel (Note: It is not compatible with DVI, we do not recommend using a HDMI to DVI cable to connect your projector/monitor).

It is recommended to use AWG 26(19+1) standard HDMI 2.0 cable. The distance can reach up to 5 meters before and after when the resolution is 4K@60Hz, it can reach up to 8 meters before and after if the resolution is below 4K@30Hz

Package:
HDMI Extractor 4K HDR 60Hz eARC -  1pcs
IR remote control  - 1PCS (ถ่าน AAA x2)
5V DC Power Adapter - 1 pcs
User manual - 1pcs

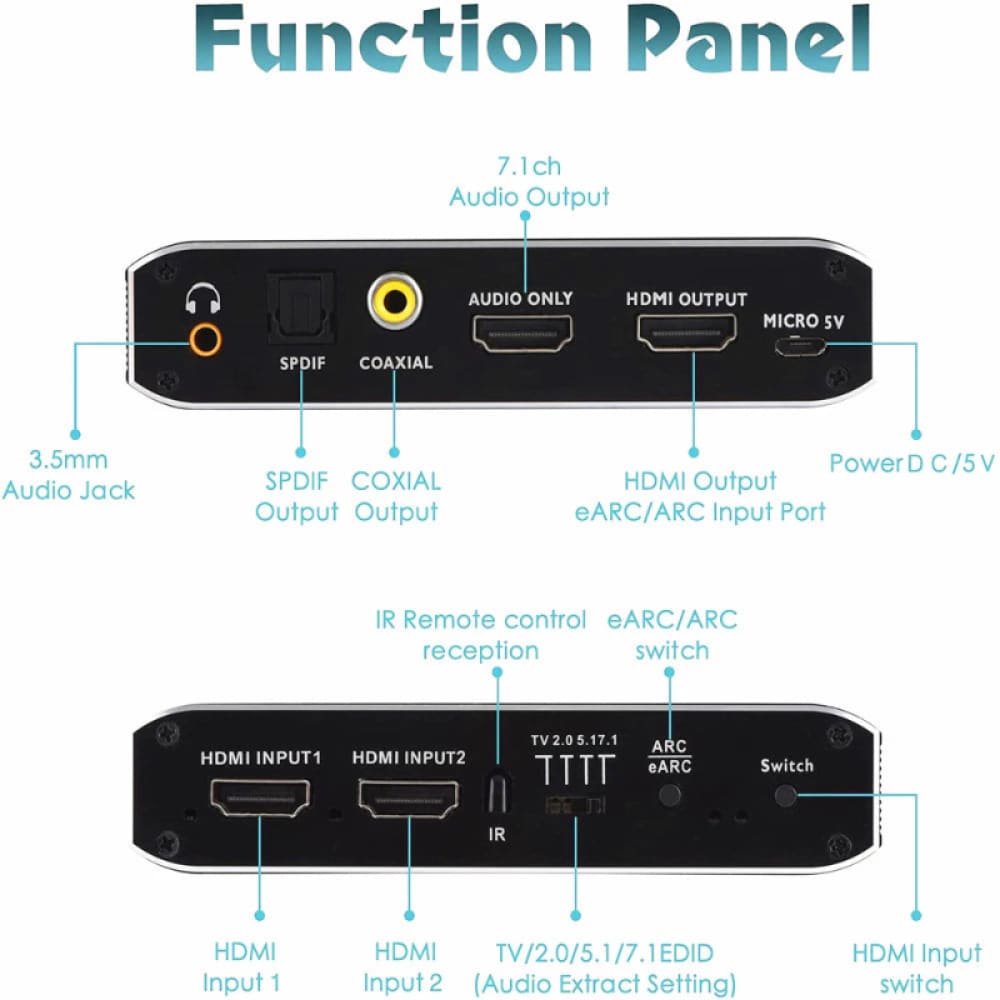

Input port ................................... .......2 X HDMI
output ports ............................... .........1 X HDMI (Female type)
1XHDMI audio output ...................... Support ARC/eARC function
1XToslink audio output ..................... Support Audio Return Channel Function
1XCoaxial Audio Output .................... Support Audio Return Channel function
1 x3.5mmJack output......................... Sound extract function
sound support ................................... LPCM 7 .1CH,Dolby TrueHD and DTS -HD Master Audio
Resolution Video ................................ Up to 4K @ 60/120Hz RGB 8 : 8:8
operating temperature ratio ................. 0 C to 40 C/ 32Fto 104F
storage temp..... ...............................- 20 C to 6 C/ -4F TO 104F
size .... ........................................... ..... 60 X 82 X 22MM
