FEATURES

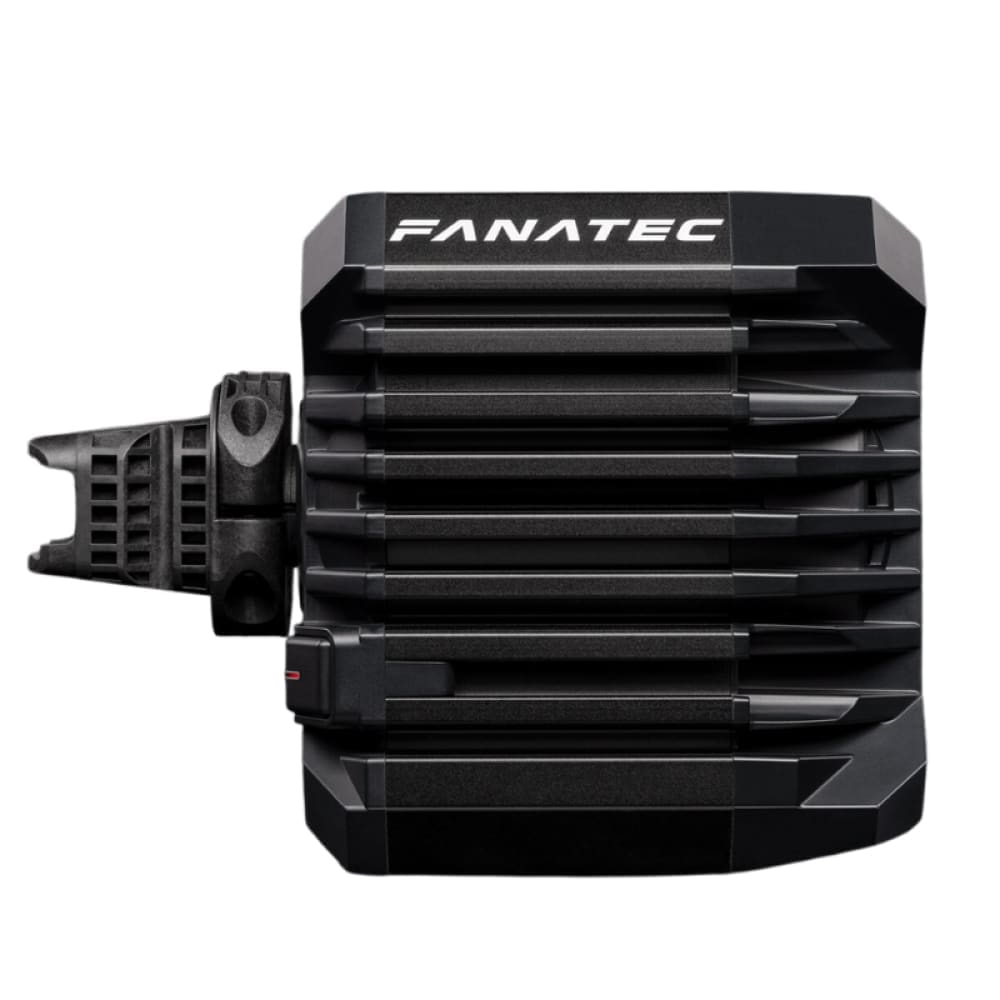

CSL DD:
• Direct-Drive system delivers instant, detailed force feedback
• Linear, consistent performance (5 Nm peak torque)
• Optional Boost Kit 180 (sold separately) unlocks maximum strength (8 Nm peak torque)
• Patented, exclusive FluxBarrier technology optimises motor efficiency and smoothness
• Full Fanatec SDK support ensures game compatibility out of the box for all major racing games
• Standard Tuning Menu allows beginners to get started quickly without having to worry about settings
• Advanced Tuning Menu allows enthusiasts to fine-tune the force feedback characteristics to suit their driving preferences
• High-resolution (contactless) Hall-position-sensor, same as Podium Series
• Steering axis made from carbon fibre-enhanced composite
• Fanless: wheel base housing is made from aluminium (passive heat sink, core structural component) with composite end caps
• Rotation: 2520 degrees (electronically limited, adjustable)
• Slip ring system (life-tested for thousands of hours) provides cable-free delivery of power and data to steering wheels
• Automotive-grade quick release, exchangeable
• T-nut rail system on sides and bottom for easily adjustable hard-mounting
• Optional table clamp (sold separately), supports 5 to 60 mm table thickness
• Ports:
• Power supply
• USB-C to PC / console
• Fanatec DataPort-C
• Shifter 1
• Shifter 2 (Sequential only)
• Pedal
• Handbrake
• Front-mounted threaded inserts for Fanatec accessories (e.g. ClubSport Static Shifter Paddles, available separately). Not intended for front-mounting the wheel base to a sim racing chassis/cockpit.

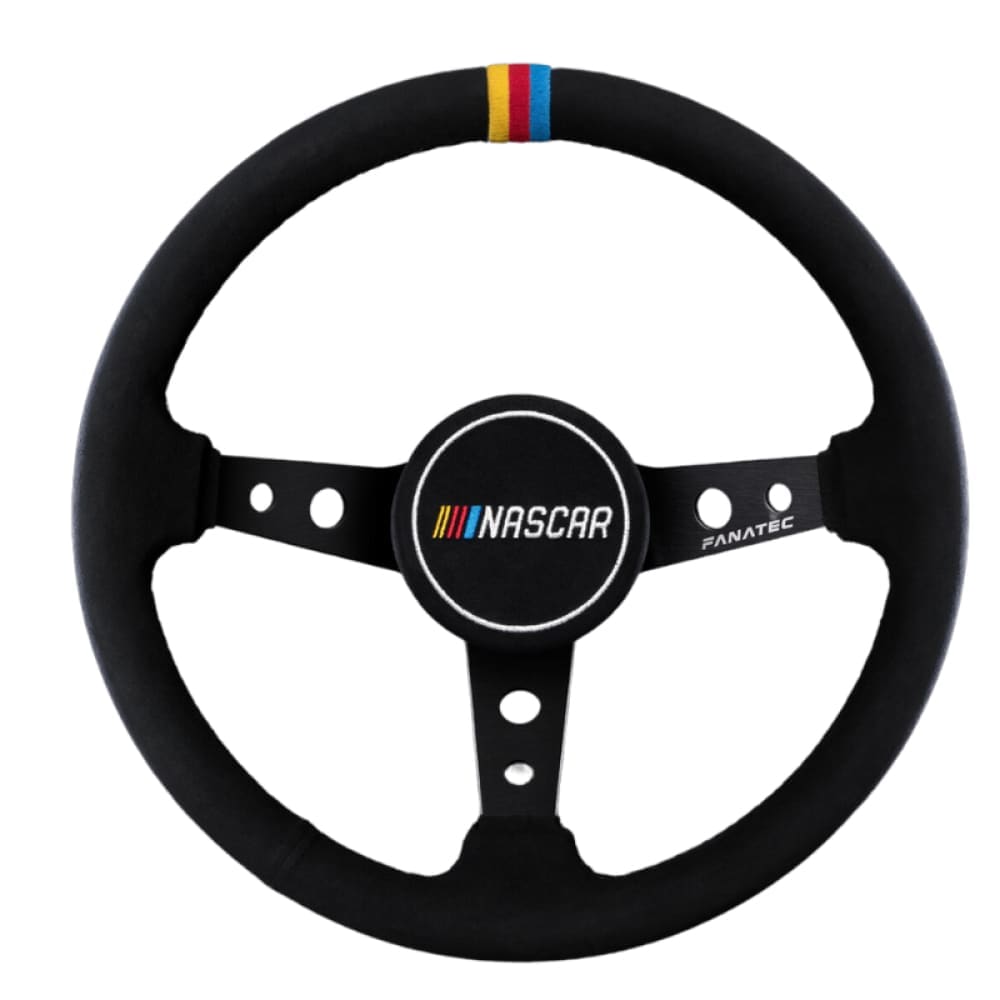

Podium Wheel Rim NASCAR:
• Officially licensed NASCAR product
• Three-spoke aluminium wheel rim with a 350 mm diameter
• Genuine Alcantara© grip
• Genuine Alcantara© hub cover with embroidered NASCAR logo
• Weight: 1009g

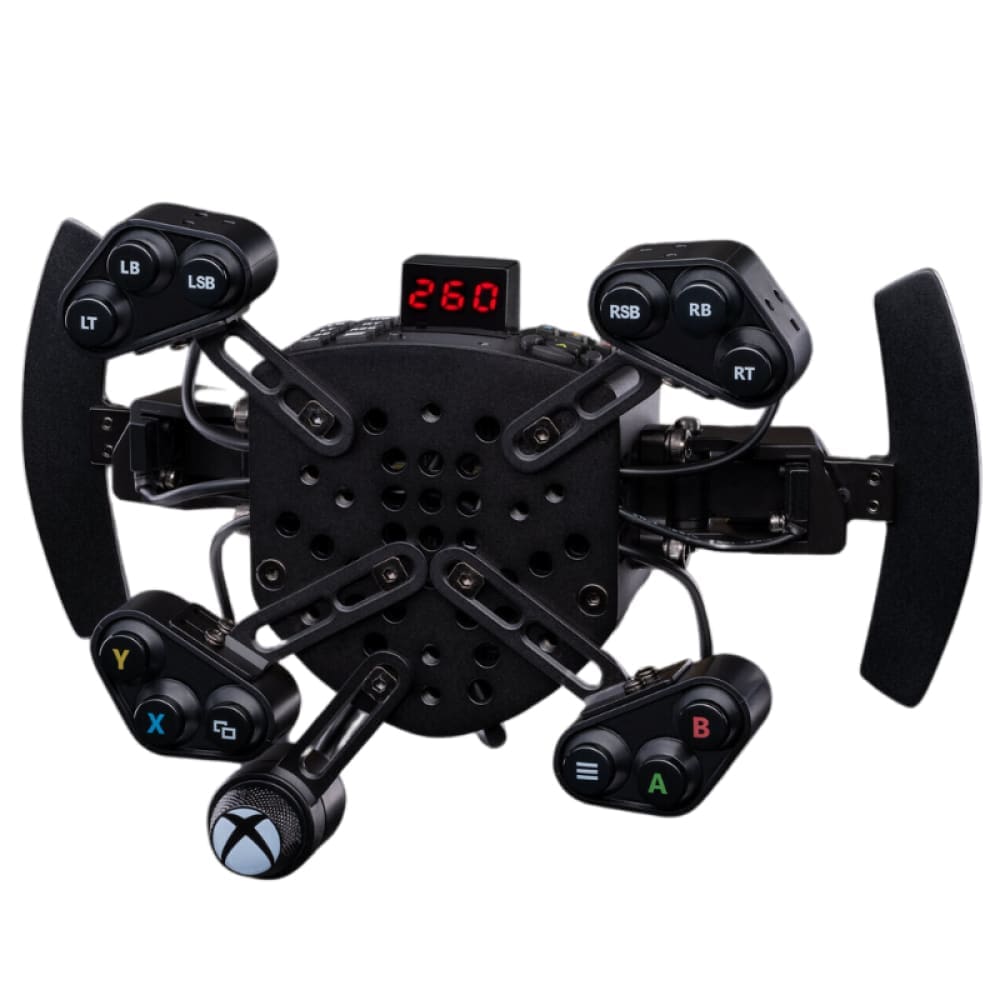

ClubSport Universal Hub V2 for Xbox:
• Enables Xbox One and Xbox Series X|S compatibility on all connected Fanatec hardware
• Can be used with all Fanatec wheel rims and all third-party rims using the 6 x 70 mm or 3 x 50 mm bolt pattern (e.g. Sparco, MOMO, OMP)
• Fully assembled and pre-configured to mount the Fanatec Wheel Rim GT (or similar)
• Improved electronics means hub is firmware-updatable
• ClubSport Magnetic Paddle Module preinstalled
• 3 mm-thick, black anodised aluminium paddle plates
• Paddle module cage made of CNC machined aluminium
• Neodymium magnets
• Two sets of paddle plates for small and large steering wheels
• Paddle Plate Spacers to adjust to different steering wheel diameters
• Additional spacers to adjust distance of shifter paddles to wheel rim
• Paddle module easily upgradable to Podium Advanced Paddle Module (optional)
• Detachable button caps with Xbox symbols, interchangeable with the included racing-style button caps
• 16 integrated buttons on top of the hub
• Four button clusters with three buttons each
• 7-way FunkySwitch™: left, right, up, and down directional inputs, push button, and rotary encoder functionality
• Tuning Menu button for instant access to force feedback and other Fanatec hardware adjustments
• Three-digit LED display for Tuning Menu functions and telemetry data from compatible games or third-party software. It can be installed in two positions: upright or flat
• Shifter paddle units, button clusters, and FunkySwitch™ can be removed to save weight
• DataPort-C connector for Podium Button Module Endurance (optional)
• Allows the use of third-party USB steering wheels on all compatible Fanatec bases (direct USB connectivity is not possible)
• An additional fifth button cluster can be attached (not included)
• Exchangeable aluminium quick release
• Weight: out-of-the-box configuration approx. 705 g (1000 g with QR1 Wheel-Side) plus wheel rim

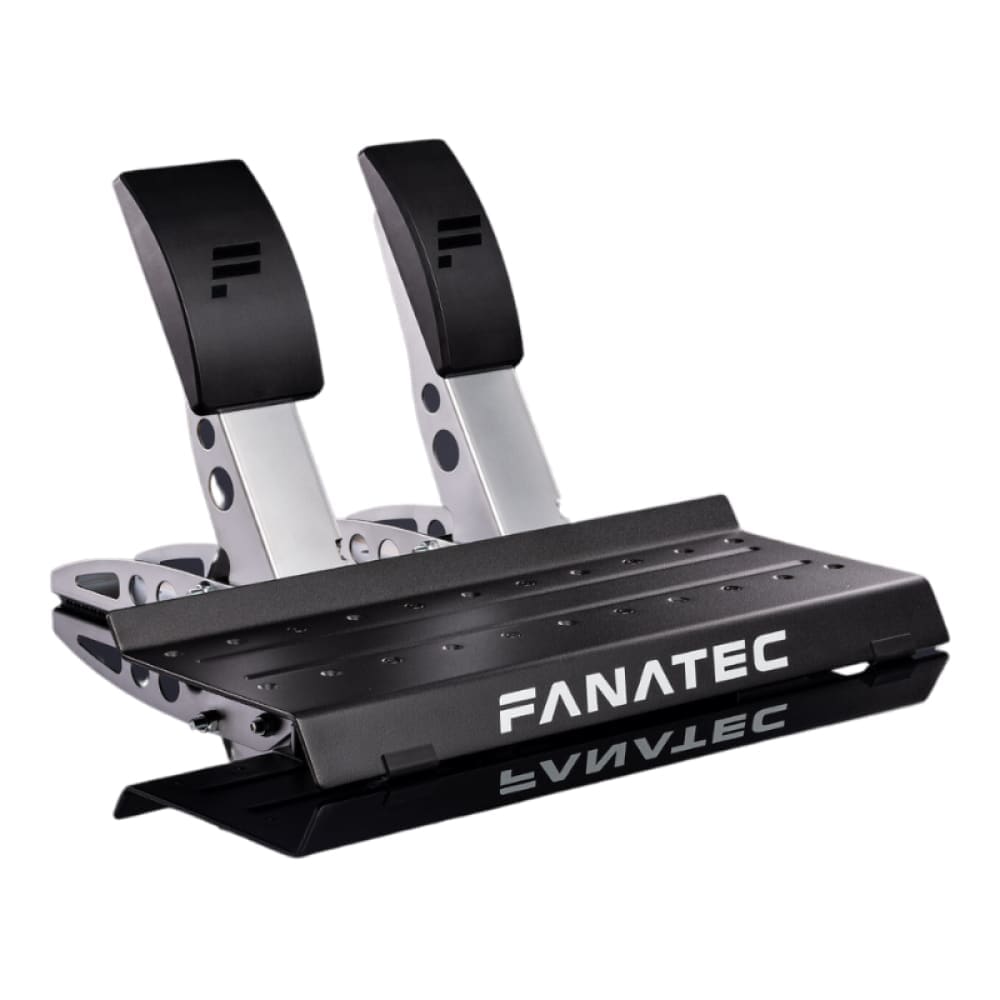

CSL Pedals:
• Two-pedal set (throttle and brake), upgradeable to three pedals
• All-metal construction (excluding pedal faces). Pedals are made from heavy steel, which helps to prevent the set from sliding on the floor (if not hard-mounted to a rig)
• Optional anodised aluminium pedal plates
• Contactless Hall sensors (12-bit) on both brake and throttle for high precision and durability
• Brake pedal spring is stiffer than throttle pedal spring, PU foam damper adds additional resistance for progressive braking feel
• Upgrade to a three-pedal configuration with Clutch Kit or Load Cell Kit
• CSL Pedals Clutch Kit provides a third pedal for the lowest price
• CSL Pedals Load Cell Kit also provides a third pedal, and upgrades the brake and electronics
• Pedal position can be adjusted sideways along heel rest
• Height-adjustable pedal faces
• Modular design means inverted mounting to a rig is possible
• Vertical rear plates allow pedals to be easily braced against a wall or other vertical surface
• Pearl chrome plating on pedal bases and arms
• Black powder coating on heel rest
• Pedals connect directly to all compatible Fanatec Wheel Bases
