FEATURES

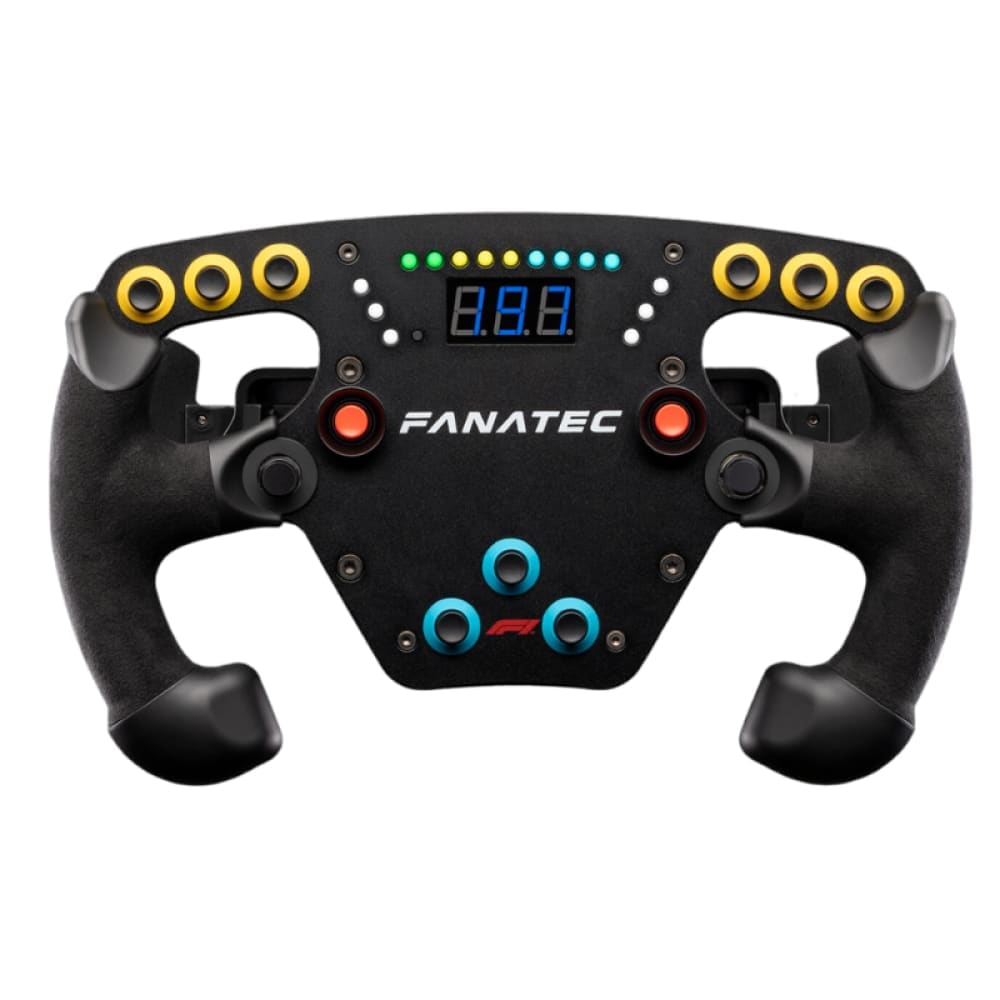

ClubSport Steering Wheel F1® Esports V2:
• Officially licensed by Formula 1™
• Replica of a steering wheel as used in formula cars. The compact diameter of 270 mm allows fast movements and reactions
• Durable metal construction
• Genuine Alcantara® grips
• Magnetic paddle shifters (CSL Elite Magnetic Paddle Module, preinstalled)
• 3 mm-thick, black anodised aluminium paddle plates
• Paddle module cage made of polymer composite
• Neodymium magnets
• Easily upgradable to ClubSport Magnetic Paddle Module or Podium Advanced Paddle Module (sold separately)
• 11 buttons
• Analogue joystick
• 7-way FunkySwitch™: left, right, up, and down directional inputs, push button, and rotary encoder functionality
• Two vibration motors integrated with the grips, controllable through wheel Tuning Menu (SHO) or by game through Fanatec SDK
• RevLEDs with nine multi-colour RGB LEDs to show motor RPM and optimal shifting point, programmable by the user via FanaLab and by game developers via the Fanatec SDK
• Two FlagLEDs with three multi-colour RGB LEDs each to indicate tyre slip, flag warnings, pit limiter, and more, programmable by the user via FanaLab and by game developers via the Fanatec SDK
• Vibrant blue LED display to show telemetry data such as speed or gear selection (in supported games)
• Tuning functions with LED display to adjust settings independent from the game and during gameplay (see description of compatible wheel base / racing wheel for details)
• Improved electronics means wheel is firmware-updatable
• Exchangeable aluminium quick release
• Steering wheel weight: approx. 1255 g (including QR1 Wheel-Side)
CSL DD:
• Direct-Drive system delivers instant, detailed force feedback
• Boost Kit 180 included
• Linear, consistent performance (8 Nm peak torque)
• Patented, exclusive FluxBarrier technology optimises motor efficiency and smoothness
• Full Fanatec SDK support ensures game compatibility out of the box for all major racing games
• Standard Tuning Menu allows beginners to get started quickly without having to worry about settings
• Advanced Tuning Menu allows enthusiasts to fine-tune the force feedback characteristics to suit their driving preferences
• High-resolution (contactless) Hall-position-sensor, same as Podium Series
• Steering axis made from carbon fibre-enhanced composite
• Fanless: wheel base housing is made from aluminium (passive heat sink, core structural component) with composite end caps
• Rotation: 2520 degrees (electronically limited, adjustable)
• Slip ring system (life-tested for thousands of hours) provides cable-free delivery of power and data to steering wheels
• Automotive-grade quick release, exchangeable
• T-nut rail system on sides and bottom for easily adjustable hard-mounting
• Optional table clamp (sold separately), supports 5 to 60 mm table thickness
• Ports:
• Power supply
• USB-C to PC / console
• Fanatec DataPort-C
• Shifter 1
• Shifter 2 (Sequential only)
• Pedal
• Handbrake
• Front-mounted threaded inserts for Fanatec accessories (e.g. ClubSport Static Shifter Paddles, available separately). Not intended for front-mounting the wheel base to a sim racing chassis/cockpit.

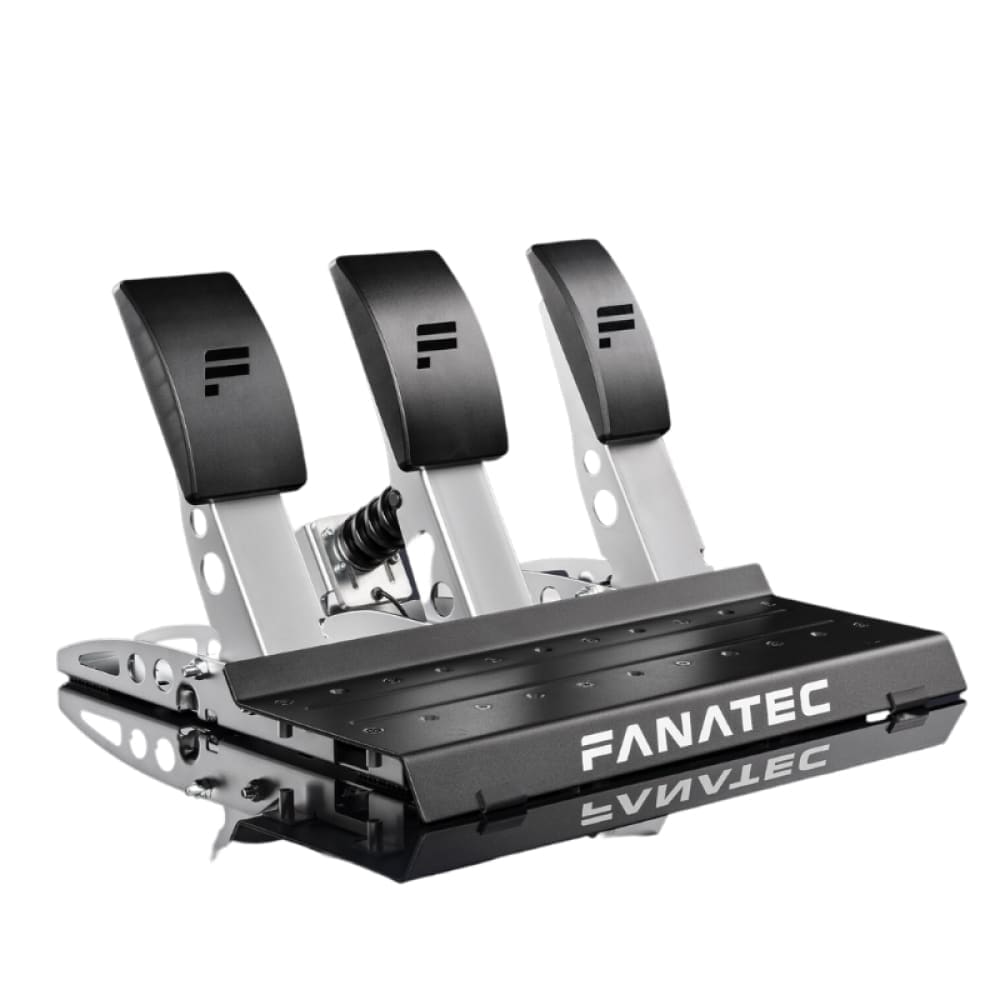

CSL Pedals + CSL Pedals Load Cell Kit:
• Three-pedal set (clutch, brake, throttle)
• All-metal construction (excluding pedal faces)
• Optional anodised aluminium pedal plates (CSL Pedals Tuning Kit, sold separately)
• Contactless Hall sensors (12-bit) on both clutch and throttle for high precision and durability
• Clutch pedal spring is stiffer than throttle pedal spring
• Pedal position can be adjusted sideways along heel rest
• Height-adjustable pedal faces
• Modular design means inverted mounting to a rig is possible
• Vertical rear plates allow pedals to be easily braced against a wall or other vertical surface
• Pearl chrome plating on pedal bases and arms
• Black powder coating on heel rest
• Custom-designed load cell sensor
• 12-bit precision
• Load cell sensitivity (approx. 10 kg minimum) adjustable via Tuning Menu (or Fanatec Control Panel on PC)
• Heavy-duty elastomer stack with 65 Shore hardness
• Upgraded electronics
• USB or RJ12 connection (USB means you can use the CSL Pedals as a standalone USB device on PC)
• Manual calibration of Min and Max values possible, settings saved to the internal memory
• Pedals connect directly to CSL DD
