Fanatec

Fanatec Clubsport Pedals V3 Brake Performance Kit

Fanatec Clubsport Pedals V3 Brake Performance Kit

Regular price 1,890.00 ฿
Regular price Sale price 1,890.00 ฿
Sale Coming Soon
Taxes included. Shipping calculated at checkout.

Gain the maximum advantage

The human body memorizes muscle tension much better than foot position. This is why all car brakes measure the pressure and not the travel. Race and F1 cars have almost no travel at all.
Compatible to ClubSport Pedals V3

Compatible to ClubSport Pedals V3

This Brake Performance Kit is the perfect upgrade for your ClubSport Pedals V3 (inverted), increasing the brake pressure point feeling​ by reducing the brake pedal travel and providing a higher brake pressure capability.

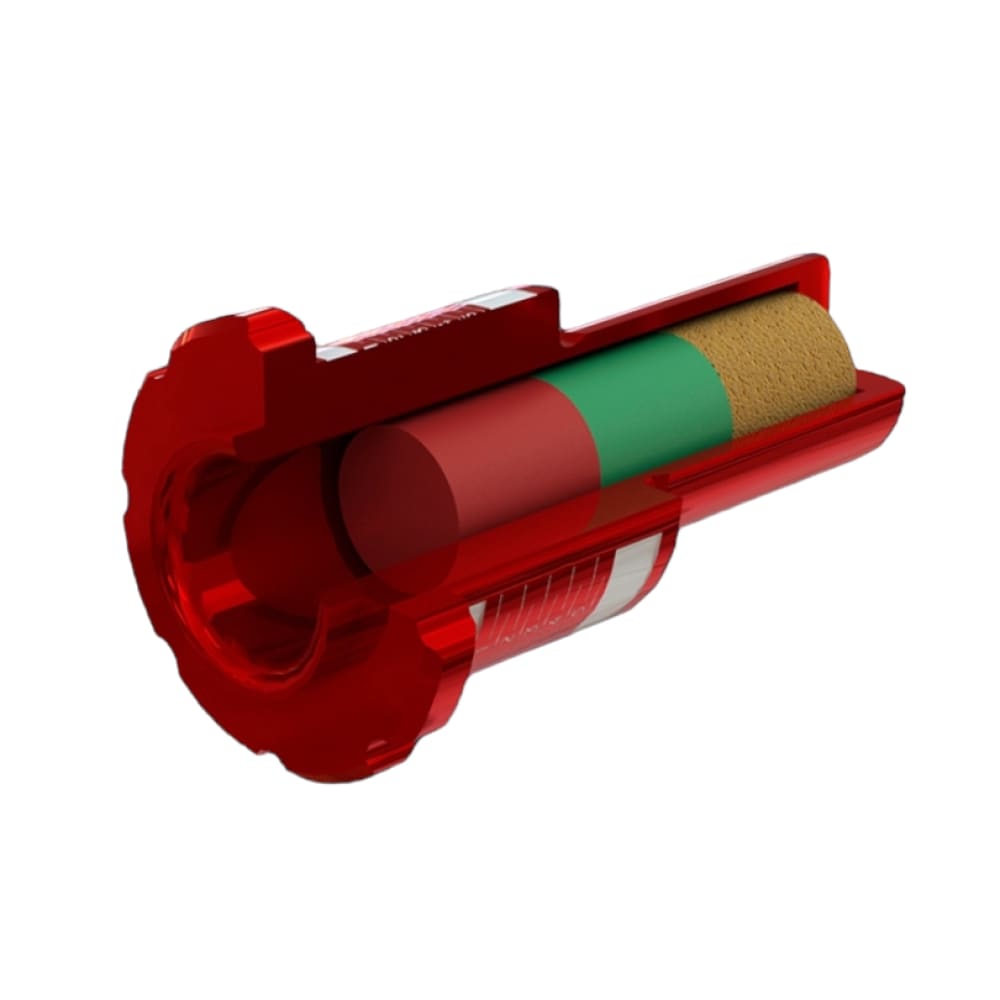

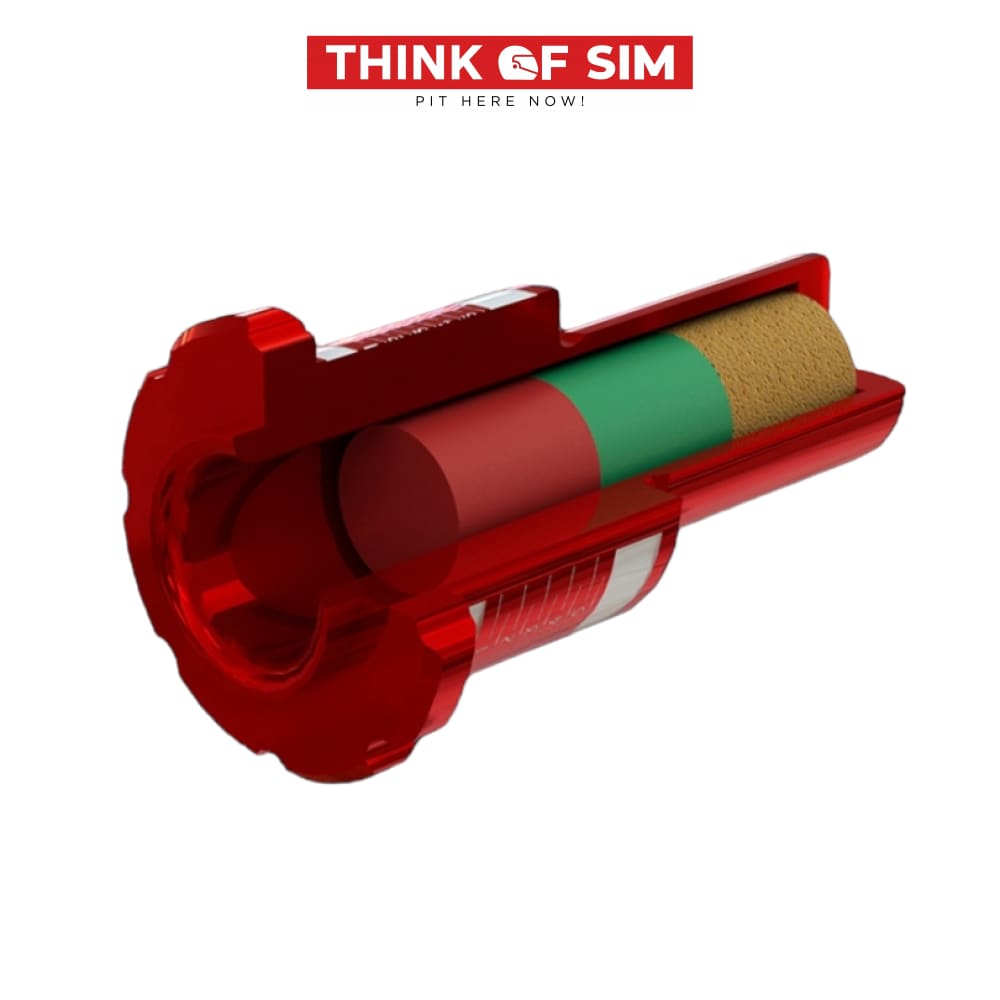

Installed at the preload screw

The red and/or green Elastomer springs and the short Polyurethane spring will be installed to the preload screw of the brake unit.​
Installed at the preload screw

Mix & Match!

There are 8 resistance and travel options with the combinations of the red and green Elastomer springs and their two diameters. The PU foam spring is an optional component to set up a lighter start force which will double the amount of possible configurations to 16.

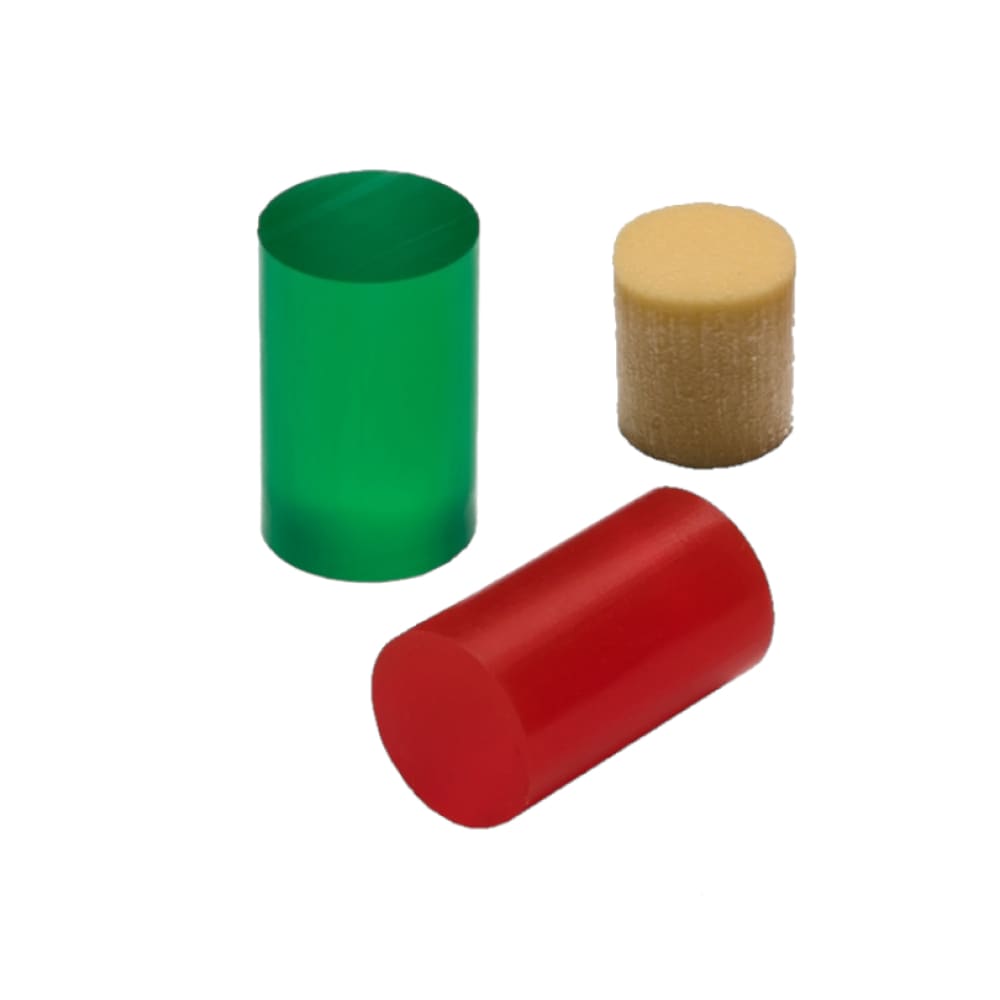

Green Elastomer spring

Green Elastomer spring

The green Elastomer spring is the harder material version. For fine-tuning, two thicker and harder ones (Ø 13mm) as well as a thinner and softer one (Ø 12mm) are included, both 20mm in length

Red Elastomer spring

The red Elastomer spring is the slightly softer material version. Also, two thicker and harder ones (Ø 13mm) as well as a thinner and softer one (Ø 12mm) are included, both 20mm in length.
Red Elastomer spring


Features

  • Can be used on the brake pedal of the ClubSport Pedals V3 (inverted)
  • Provides a realistic brake point pressure feeling like in a real race car
  • Adjustable in pedal travel and resistance by mixing and matching the various hardness and diameter of the Elastomer springs together with the PU foam
  • Easy to lubricate and super durable with well over 1 Million cycles
  • Elastomer springs manufactured from the high-end material Eladur, “made in Germany”
  • There are many possible combinations of Elastomer springs.





Ø13
green

Ø12
green

Ø13
red

Ø12
red

Ø13
green

very
hard

hard

medium

soft

Ø12
green

hard

medium

soft



Ø13
red

medium

soft





Ø12
red

soft











Compatibility

Products

  • ClubSport Pedals V3
  • ClubSport Pedals V3 inverted

Special Notes

  • ClubSport Pedals V3 / ClubSport Pedals V3 inverted (not included) are required to use the ClubSport Pedals V3 Brake Performance Kit.
  • The preload screw of the ClubSport Pedals V3 (inverted) cannot be used to its maximum with the ClubSport Pedals V3 Brake Performance Kit. Its use is be limited to eliminating the mechanical play.
  • The installation of the ClubSport Pedals V3 Brake Performance Kit requires a partial disassembly of the pedals and therefore requires a certain level of technical skills. For further information please review the quickguide and manual in the download section.

Packaging Details

  • Dimensions (L x W x H)20.5cm x 15.5cm x 3cm
  • Weight0.1kg
  • Volume weight0.19kg

What's included

  • 2x Elastomer spring red Ø13 x 20 mm
  • 1x Elastomer spring red Ø12 x 20 mm
  • 2x Elastomer spring green Ø13 x 20 mm
  • 1x Elastomer spring green Ø12 x 20 mm
  • 1x Polyurethane spring (PU foam) Ø13,5 x 15 mm
  • 1x Lithium grease bottle (only for Elastomer spring)
  • 1x Installation tool (Fix-1) (G)
  • 1x Quick Guide
