Platform | PC |
FFB Drive System | Direct Drive |
Max Wheel Rotation | Limitless |
Housing Material | Aviation Grade Aluminum Alloy |
Housing Color | Black |
Peak Torque | 12 N·m |
Peak Power | 216W |
Input voltage | 110V~220V AC —>36V DC |
USB Refresh Rate | 1000Hz |
App Functions | Supported |
Quick Release | Supported |

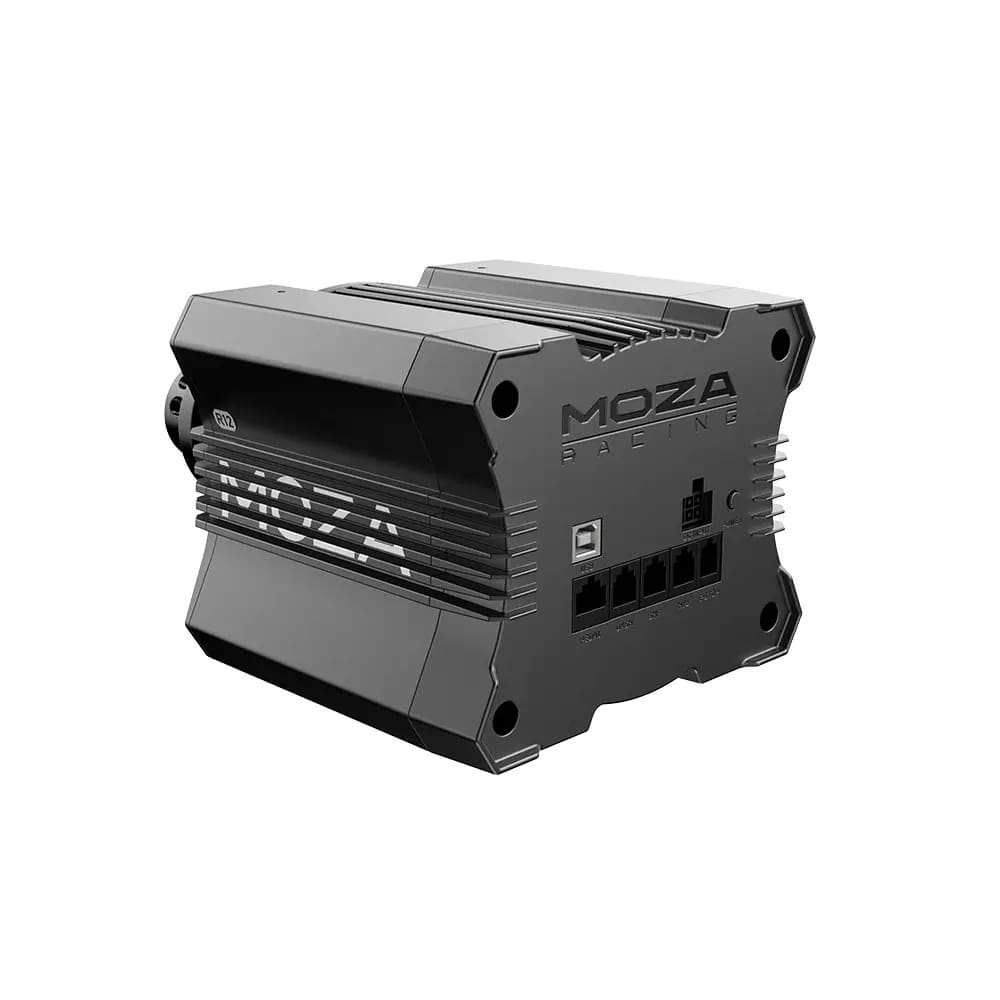

Connection Ports | Power, USB, Pedal, Dash, Shifter, Handbrake, E-stop |
Accessories | User manual, power adapter, cable, tool kit |
Fixing Method | 4-hole bottom mount |
Desk Clamp | Optional |
E-stop | Optional |
Online Firmware Update | Supported |
Weight | 7.5 kg |
Dimensions (mm) | 225.87 x 156.68 x 123.99 |

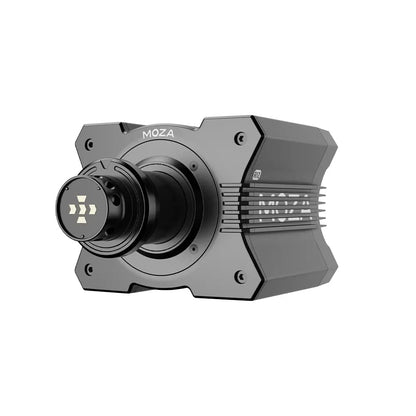

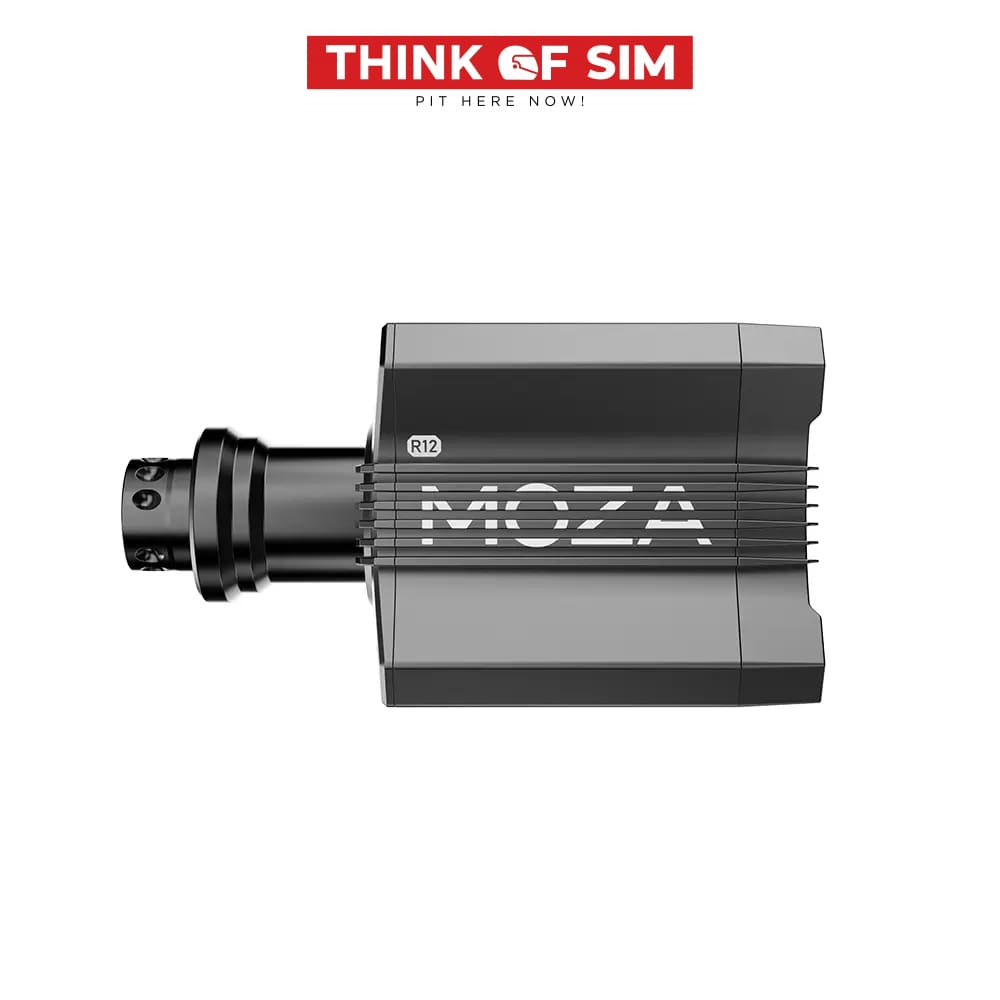

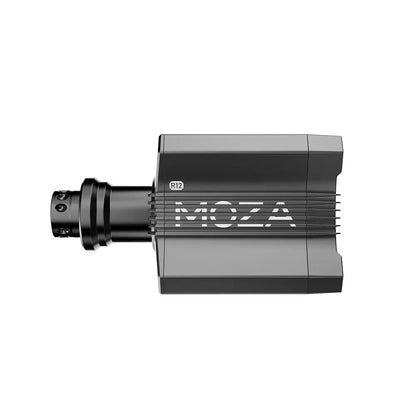

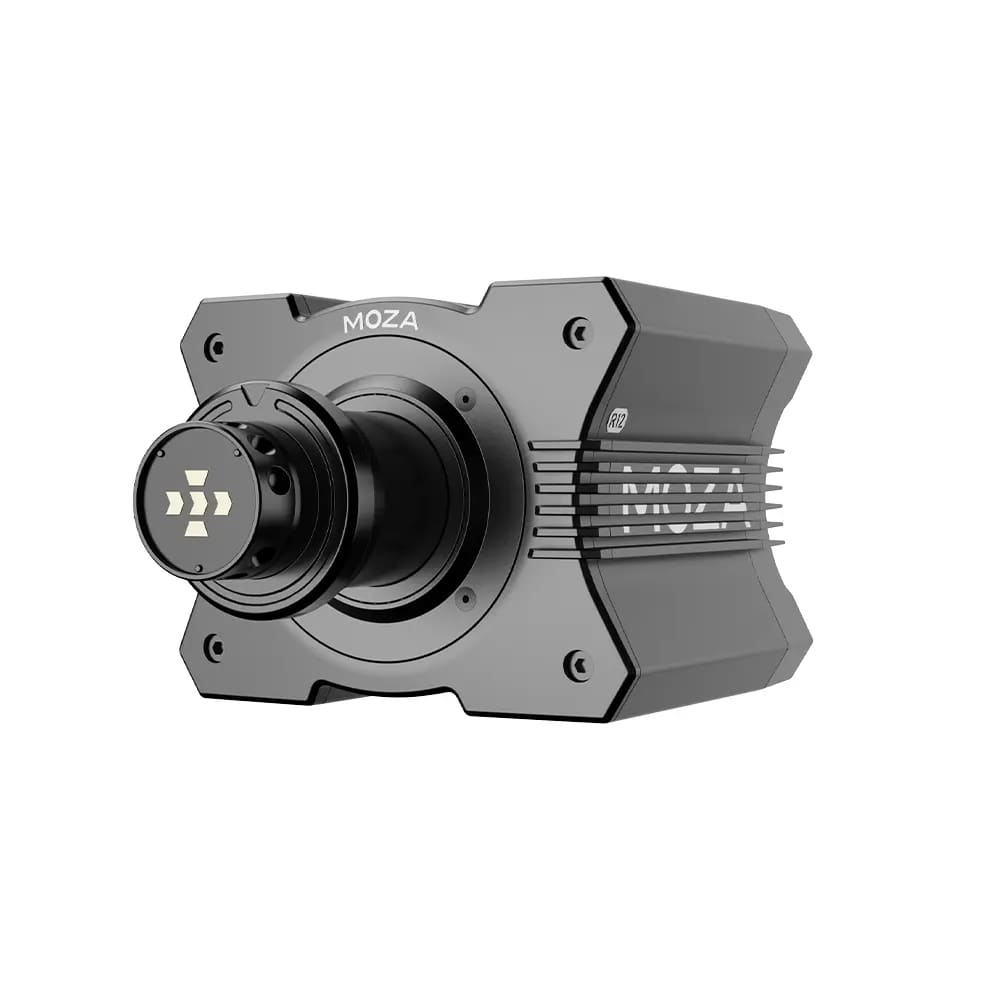

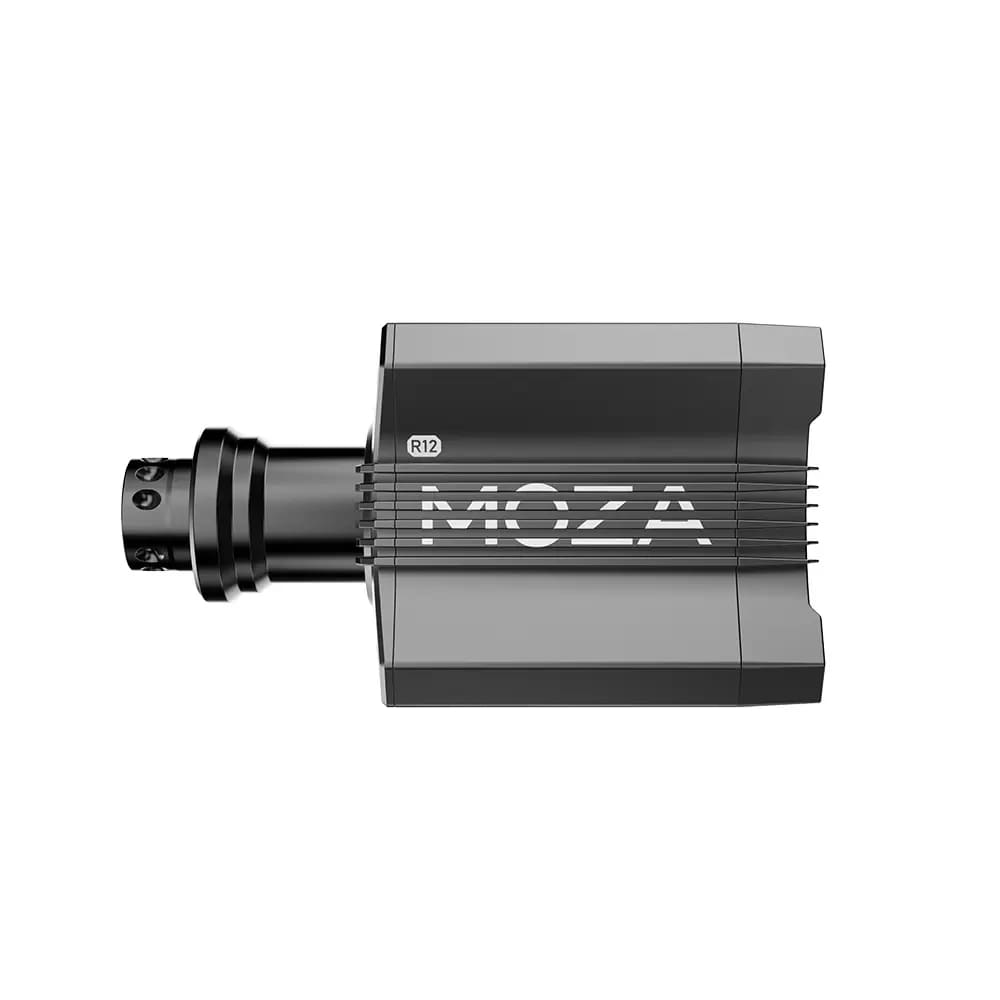

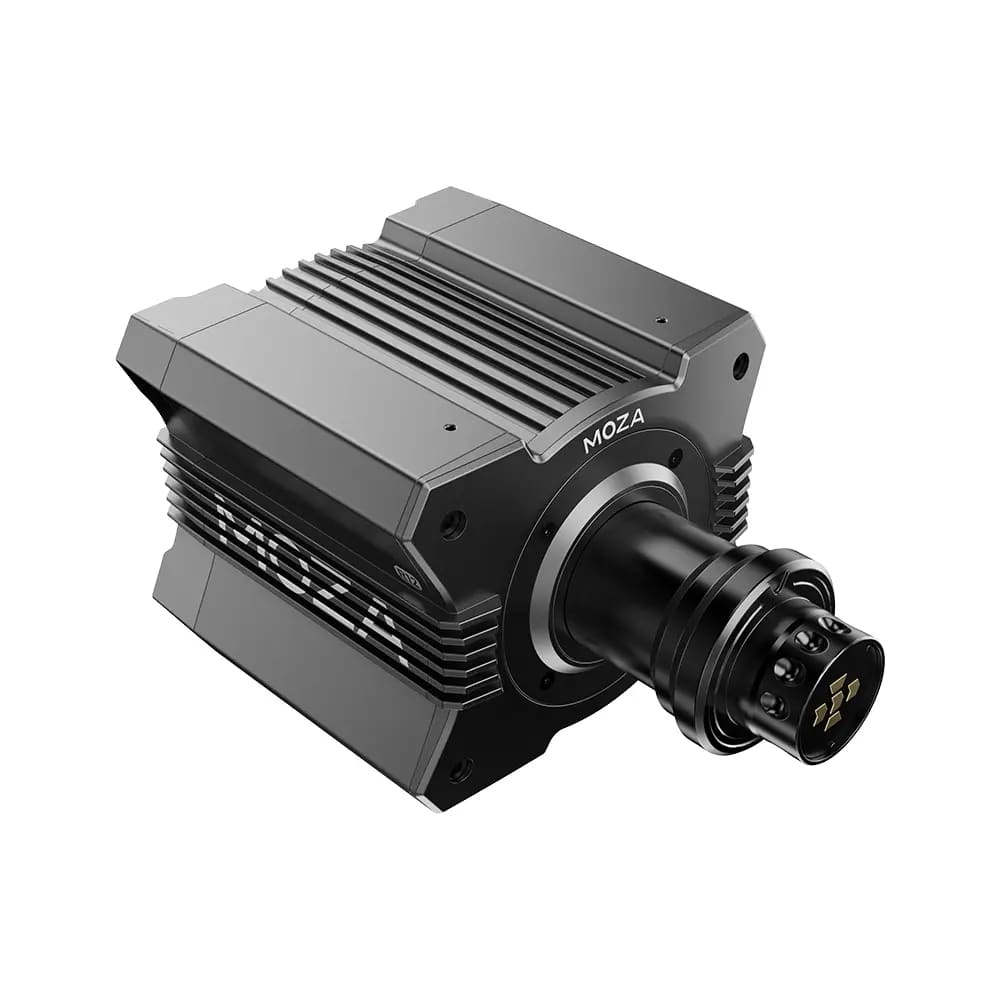

Introducing the MOZA R12 sim racing wheelbase, the latest addition to our collection. With well-balanced specs, it offers a remarkable combination of power and performance. Experience the impressive 12 N·m of torque delivered by the direct drive servo motor, ensuring a dynamic racing experience. The lightweight design enhances agility and responsiveness on the track. Equipped with a new generation FFB filtering algorithm, it delivers precise and immersive force feedback. Crafted from aviation-grade aluminum, it guarantees durability and a sleek aesthetic. The industrial conductive slip ring enables smooth and uninterrupted operation. Benefit from ultra-low FFB latency and steering response, allowing for lightning-fast reactions. The intelligent temperature control system ensures optimal performance during intense racing sessions. With hand-off protection, you can race with peace of mind. Take control with the MOZA Pit House Control Software and enjoy the convenience of cloud-based mobile APP control.
Platform | PC |
FFB Drive System | Direct Drive |
Max Wheel Rotation | Limitless |
Housing Material | Aviation Grade Aluminum Alloy |
Housing Color | Black |
Peak Torque | 12 N·m |
Peak Power | 216W |
Input voltage | 110V~220V AC —>36V DC |
USB Refresh Rate | 1000Hz |
App Functions | Supported |
Quick Release | Supported |
Connection Ports | Power, USB, Pedal, Dash, Shifter, Handbrake, E-stop |
Accessories | User manual, power adapter, cable, tool kit |
Fixing Method | 4-hole bottom mount |
Desk Clamp | Optional |
E-stop | Optional |
Online Firmware Update | Supported |
Weight | 7.5 kg |
Dimensions (mm) | 225.87 x 156.68 x 123.99 |
